H.265/H.264

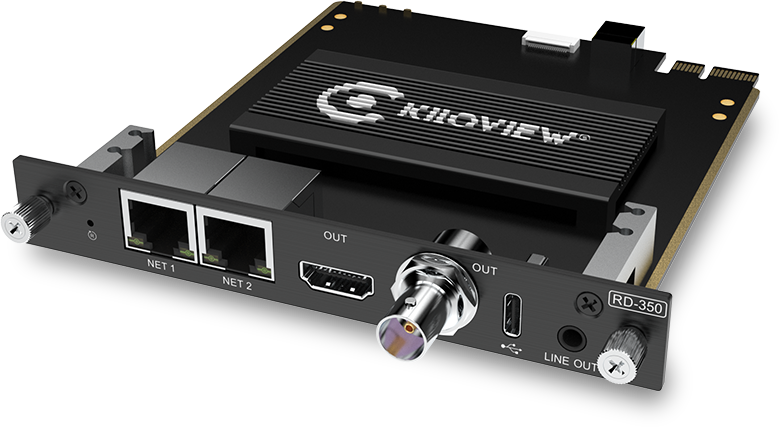

Kiloview H.265/H.264 Decoding Cards support 4K HDMI and 3G-SDI decoding capabilities.
| Model | RD- 260 | RD- 350 |
|---|---|---|
| Video Output | 1*HDMI 2.0, supports up to 3840x2160@60Hz (4Kp60), backward compatible 1*3G-SDI, supports up to 1920x1080@60Hz (1080p60), backward compatible | 1*HDMI 2.0, supports up to 3840x2160@60Hz (4Kp60), backward compatible 1*3G-SDI, supports up to 1920x1080@60Hz (1080p60), backward compatible |
| Network | 2*100M/1000M RJ-45 | 2*100M/1000M RJ-45 |
| Video Decoding | Dual 3G-SDI and HDMI outputs, capable of delivering the same or different content simultaneously | Dual 3G-SDI and HDMI outputs, capable of delivering the same or different content simultaneously |
| Decoding Capacity | Up to 4 channels decoding (4*1080P60, 3*4KP30 and 2*4KP60） | Up to 12 channels decoding (12*1080P60, 3*4KP30 and 2*4KP60) |
| Layout | Customizable 1/2/3/4 screen layouts, with adjustable screen position and size | Customizable 1~16 screen layouts, with adjustable screen position and size |
| Image/Text Overlay | Support | |
| Protocols Supported | NDI HB/NDI HX/NDI HX3.0/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP with more to come | |
| Video Decoding Format | H.264(AVC) H.265(HEVC) SpeedHQ(NDI High-bandwidth) |
|
| Audio Decoding Format | AAC/MPEG-4/MPEG2/G.711/Opus/LPCM | |
| Audio Output | SDI/HDMI Embedded, or 3.5mm Line out | |
| USB | 1*USB Type-C | |
| Intercom | Support | |
| Management | WebUI/Kiloview KiloLink Service | |
| Dimension/Weight | 32*132*19.2mm/200g | |
