Kiloview G series wireless video encoders can encode SDI/HDMI video sources into network streams through WIFI/Ethernet, and realize long-distance high-definition transmission/live video transmission on Internet WAN or local area network LAN. G series fully support SRT, RTMP, RTMPS, HLS, UDP, RTP, RTSP, Onvif and other protocols.
G1: SDI input/loop out; G2: HDMI input/loop out.
The G series has a built-in dual-band (2.4G/5GHz) WiFi module, which achieves more stable wireless transmission.
It supports real HD video input with resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.
G series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.
Note: the actual delay condition is also related to your Internet status

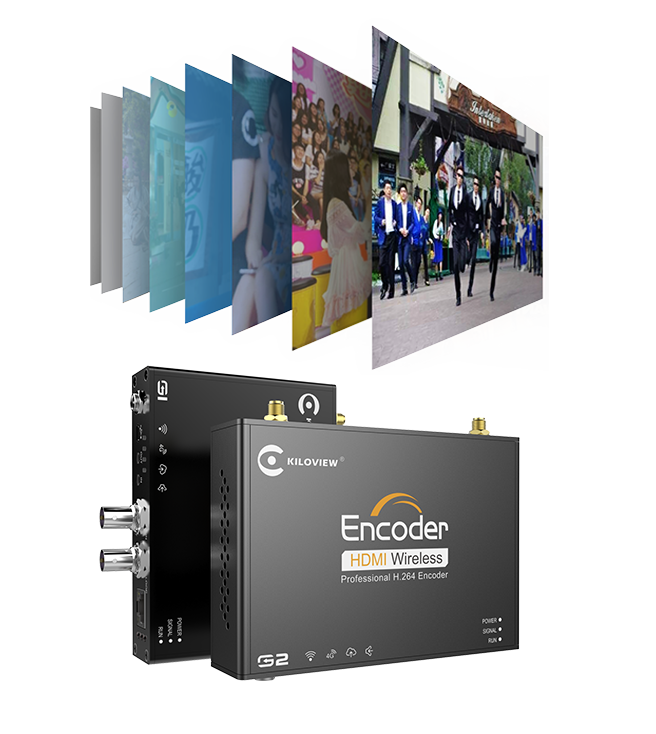

Dual stream output (main stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms (with main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz).
G series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System
G1 G2 supports embedded and 3.5mm analog audio encoding, so you can use KILOVIEW voice intercom software to realize real-time calls. >Learn more
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.
Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!
Recording prepares for future. Kiloview G series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.
TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports
| Model | G1: SDI; G2: HDMI |
|---|---|
| Video input | G1:1*BNC SDI; G2: 1*HDMI |
| Analog video input | 2*3.5mm |
| USB | 2*USB 2.0 Type-A |
| Micro SD | 1*Micro SD/TF Card storage interface |
| Network support | WIFI (2.4G/5G Hz)/Ethernet/Satellite |
| Video loop | 1*BNC SDI or 1*HDMI |
| Video resolution | Up to 1080P60Hz: SDI model：1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920x1200 |
| Video encoding | H264/AVC, Motion-JPEG |
| Audio encoding | AAC/G.711 |
| Encoding latency | <67ms |
| Media transmission protocols | SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP |
| Image and text overlay | Support custom text and picture overlay function, which can be superimposed to any position on the screen |
| Record storage | Micro SD/TF card local recording, and NAS network storage |
| Management | APP/ Web |
| Power supply/Consumption | DC 12V 1A / 4W |
| Operating temperature | -20℃~60℃ |
| Size | 125*89*28mm (4.92”*3.50”*1.10”) |
| Weight | 380g(13.4oz) |
| Support Downloads | Docs & Firmware |
| Product Type | Model No. | Input Interface | Network Connections | Resolution | Remark(s) |
|---|---|---|---|---|---|
| H.265 4K Encoder | S2 | HDMI | Ethernet/Satellite | 4KP60 | |
| H.264 4G Encoder | P1 | 3G-SDI | 4G/WiFi/Ethernet/Satellite | 1080P60 | Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities |
| P2 | HD HDMI | 4G/WiFi/Ethernet/Satellite | 1080P60 | Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities | |
| Rackmount Encoder/Decoder | 1U-1/2/3/4 | 3G-SDI +HDMI | Ethernet/Satellite | 1080P60 | Mixed Insertion of 1-4 Channels of Encoder/Decoder Modules, Dual Power |
| 3U-1/8/16 | 3G-SDI +HDMI | Ethernet/Satellite | 1080P60 | Mixed Insertion of 8/16 Channels of Encoder/Decoder Modules, Dual Power | |
| H.264 Wireless Encoder | G1 | 3G-SDI | WiFi/Ethernet/Satellite | 1080P60 | |
| G2 | HD HDMI | WiFi/Ethernet/Satellite | 1080P60 | ||
| H.264 Wired Encoder | E1 | 3G-SDI | Ethernet/Satellite | 1080P60 | |
| E2 | HDMI | Ethernet/Satellite | 1080P60 | ||
| M2 | VGA+HDMI | Ethernet/Satellite | 1080P60 |
