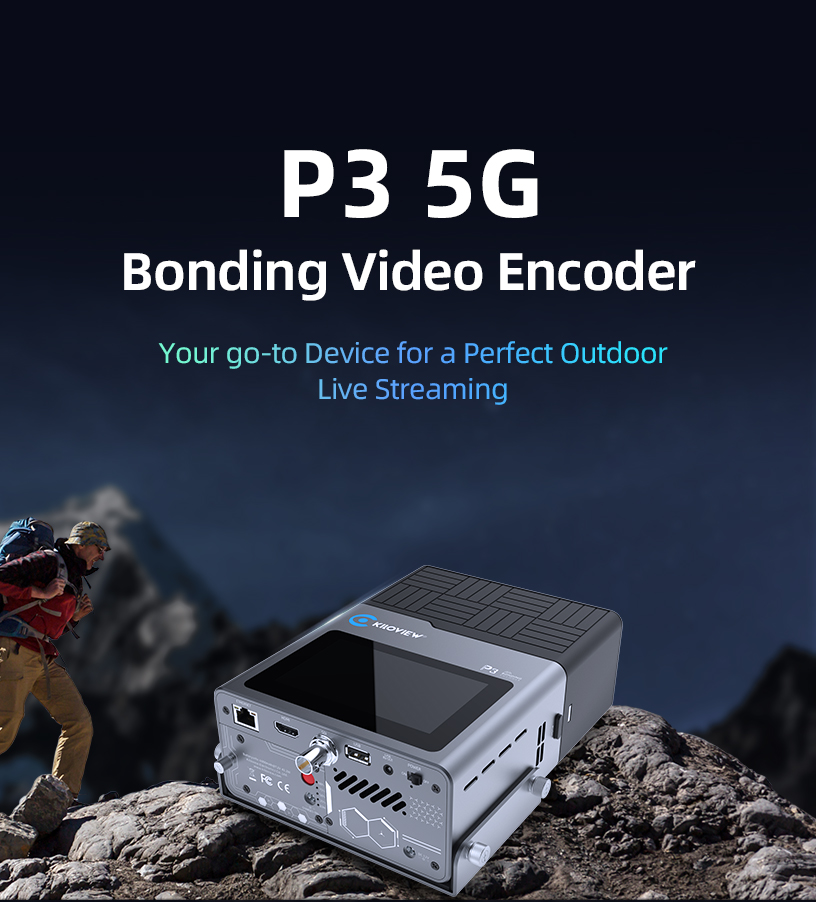

P3 5G Wireless Bonding Encoder

Experience Seamless Streaming with Our Flagship Launch

* Images are for reference only.

Unlock Seamless 5G Streaming with P3
Anytime, Anywhere!

Kiloview P3 is the next-gen of 5G wireless bonding encoder based on KiloLink technology, leading the way in the era of live streaming. It supports six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet, ensuring 24/7 seamless live streaming. With a 3500mAh built-in battery and a 7000mAh external battery, it can guarantee your all-day use. In addition, P3 adopts a modular design, allowing users to choose between 5G/4G modules (WiFi/SD module is included in the package) and battery modules to meet the live streaming needs of diversified scenarios.

The P3 features 3G-SDI and 4K HDMI video inputs with H.265/H.264 encoding, compatible with multiple streaming protocols such as RTSP, RTMP, SRT, HLS and NDI HX. It can stream directly to external platforms without the need for a relaying server, or provide an unlimited bonding and seamless streaming experience with the permanently free or privately hostable KiloLink Server Pro.

播放视频

HDMI+SDI Dual Interface, 4KP30 Image Quality

One unit for all your streaming scenarios: Whether you are using an camera with HDMI or SDI interface, the P3 can meet different connection requirements. It supports 4KP30 image quality, while we intend to provide you with every detail, in each frame .

HEVC Codec Supported, Exclusive NDI HX Support

High Quality/ Low Bandwidth
- a Cost-effective Live Streaming Solution

P3 supports H.265/H.264 encoding format. H.265 encoding technology can not only achieve better image quality at lower bit rates, but also achieve efficient data transmission with low bandwidth consumption. Meanwhile, you can always set your own video encoding rate (within 40Mbps), and adjust it according to actual network conditions and video quality requirements, ensuring the perfect flexibility.

*Currently, it only supports H.264, and H.265 will be available through upcoming firmware updates.

Effortless On-site Production with Lightning
-Fast Efficiency

Exclusive NDI HX protocol ensures tier-1 production efficiency in your studio or production center. NDI has become the preferred choice for IP production due to its high image quality/low latency transmission characteristics. When you choose P3, it not only means that you don’t need to purchase other NDI converters to start efficient production, but also allows your workflow to be fully compatible with third-party production software such as Tricaster and vMix.

*Currently, it only supports NDI HX, and NDI HX3 will be available through upcoming firmware updates.

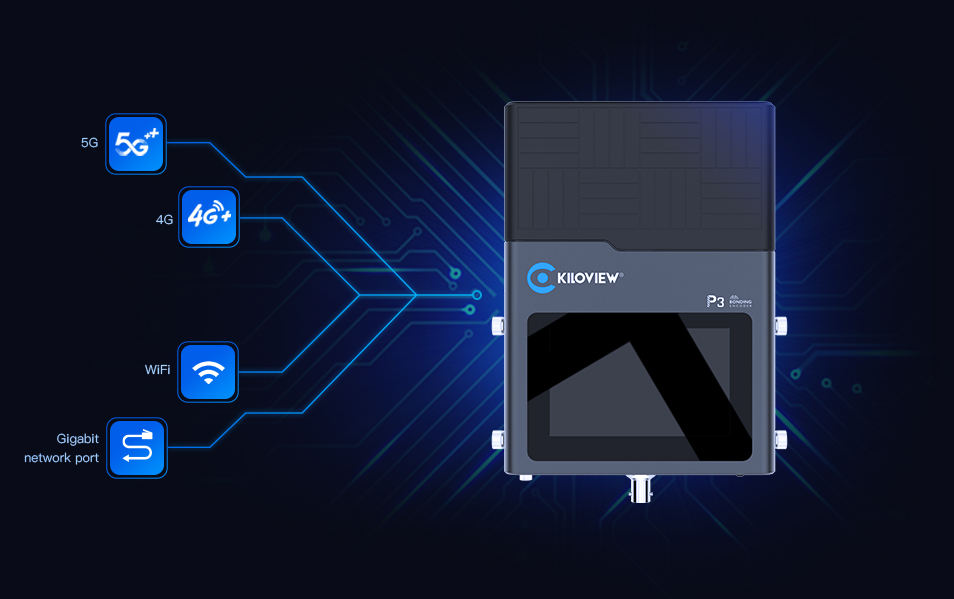

6-Channel Bonding, 5G Transmission

Go Live – Anytime, Anywhere:

P3 can be equipped with four 5G/4G modules of your choice, achieving 6-channel bonding transmission of 5G + 4G + WiFi + Ethernet. It fully utilizes patented KiloLink technology to realize strategies such as Automatic load balance & Danamic adaptive bitrate through encryption algorithms, in order to realize tier-1 reliability in streaming. At the same time, through unique customized buffering time and dynamic bitrate adjustment, it ensures that users can efficiently transmit streams with top stability even in complex and ever-changing network environments.

Additionally, it provides traffic statistics to help users monitor their data card usage.

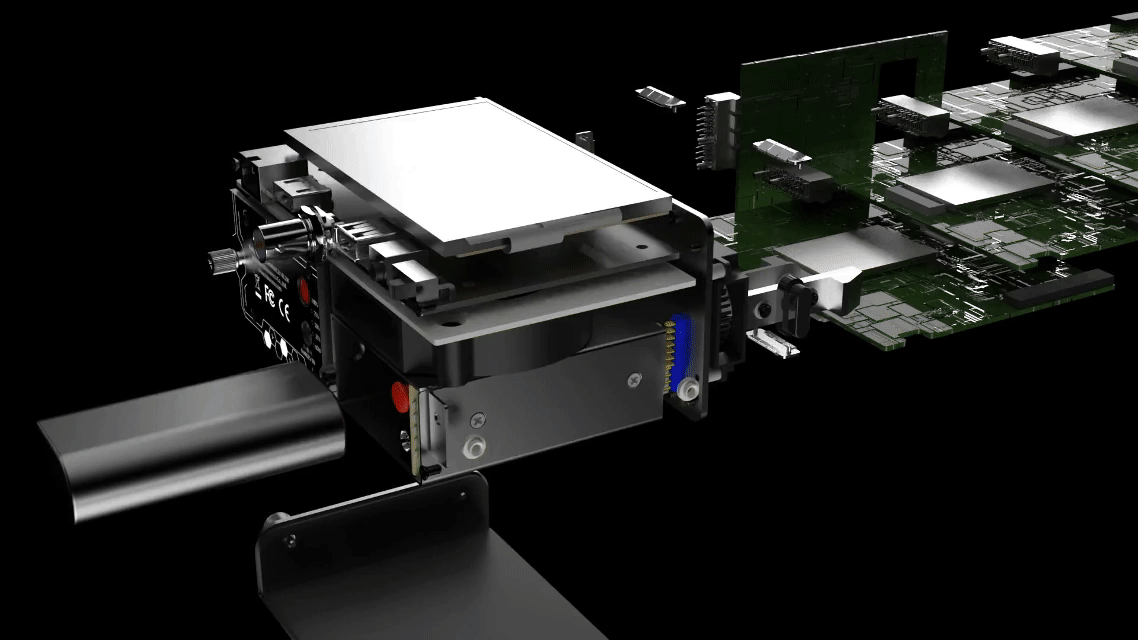

Modular Design
DIY Your Exclusive Streaming Workflow

To meet the diverse needs of business situation (such as small-scale studios/ large-scale event live streaming), P3 adopts a more flexible modular design. You can choose the most cost-effective solution by picking 5G/4G and battery modules. The device is equipped with a WiFi module (including an SD storage module), and users can freely match different modules according to their actual scenarios and regional network environment (4G/5G modules and additional battery module are purchased separately).

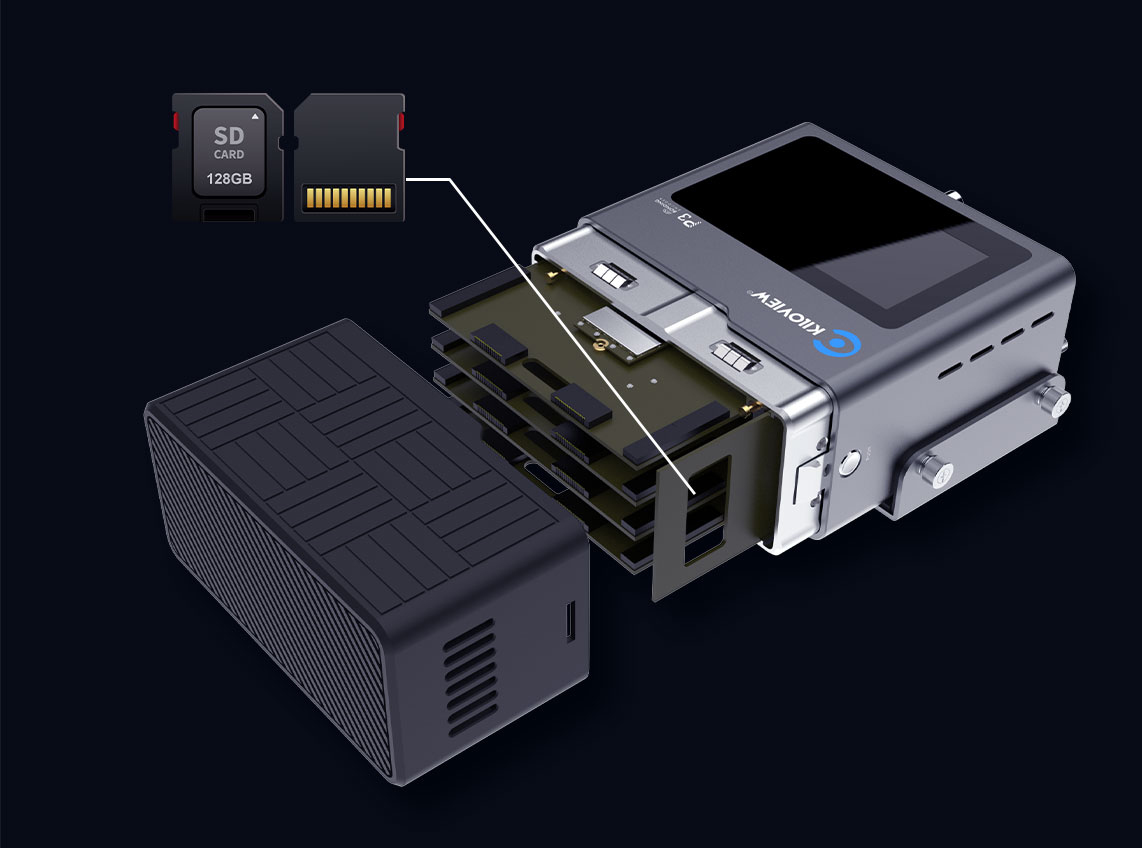

Multiple Storage Strategy Recording while Streaming

Capaturing every moment: The P3’s standard WiFi module includes a free SD card module, and supports multiple recording strategies including external USB/NAS network storage. Users can monitor videos while recording, with file formats supporting MOV, MP4. Through the device’s LCD display screen, users can view the recording status in real-time, allowing for a comprehensive control of the entire recording process.

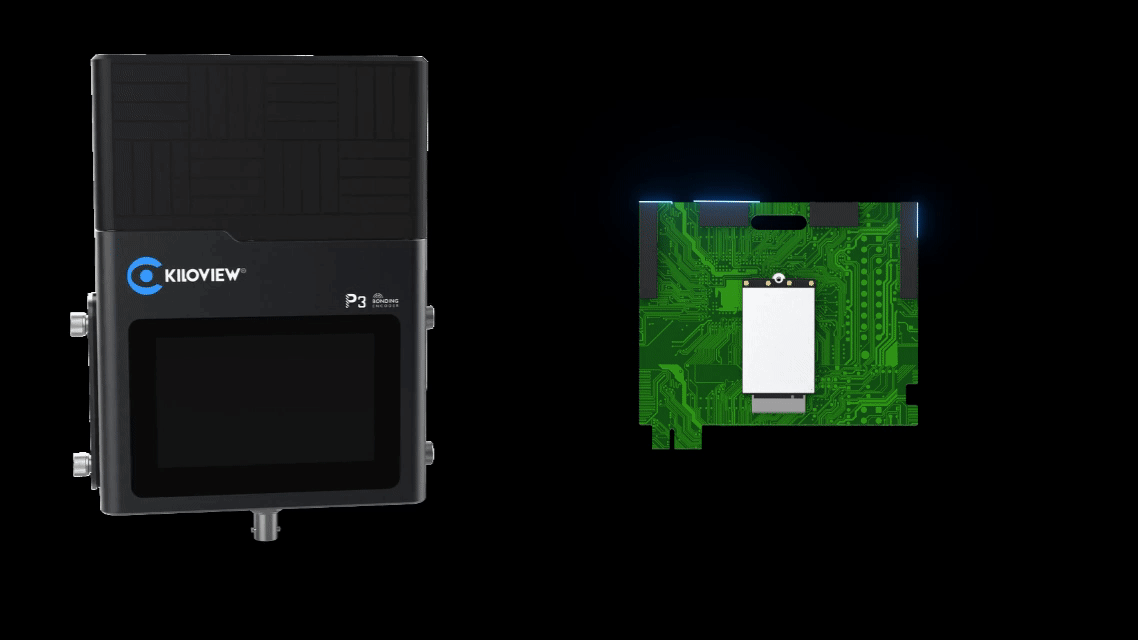

Antenna Isolation Design Excellent Anti-interference Performance

The P3 use a internal antenna design and ensure sufficient isolation by setting the best distinguishing angle between different antennas. The internal antenna can fully resist external electromagnetic interference; while the isolation design effectively avoids the mutual interference phenomenon caused by redundant antenna stacking. In your actual live streaming work, whether in a weak network environment or signal blind spots, P3 can always guarantee you with the maximum signal strength.

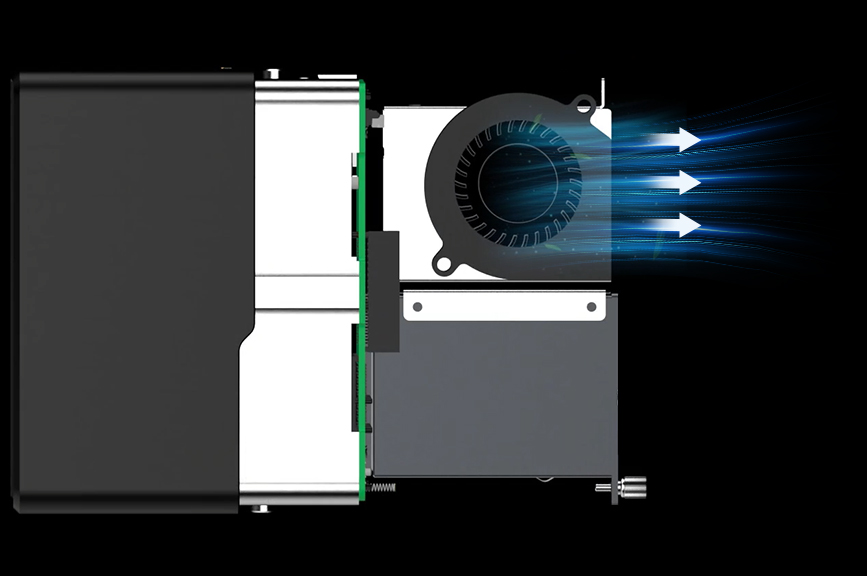

Intelligent Cooling System, Essentail for Outdoor Use

Self adjustable four speed fan: In order to ensure stable performance of the equipment under extreme weather, P3 is equipped with a temperature controlled fan that can be adjusted automatically. When the temperature detector on chip recognizes that temperature is higher than the preset value, the fan will turn on and allocate different levels of wind power according to actual needs of heat dissipation. The P3’s intelligent fan ensures cooling of the CPU timely while using the lowest energy consumption, ensuring continuously stable operation.

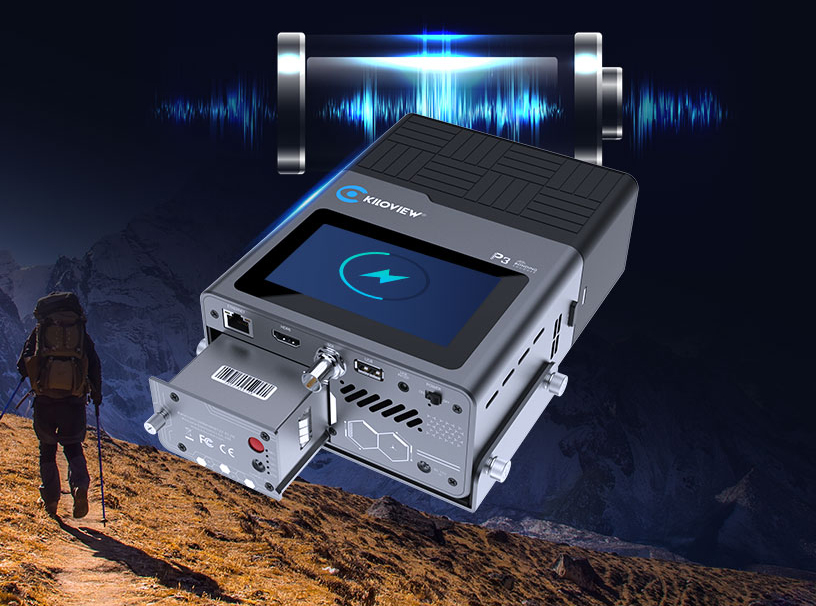

Dual Battery Modules for Your Uninterrupted Live Streaming

Rejecting the anxiety of mileage and enjoy: The P3 is equipped with a 7000mAh external battery and a 3500mAh built-in battery. The external battery can stably last for 6+hours when the 4-channel 5G module is operating at full load; while the built-in battery can provide a stable use of 3 hours. When the external battery turns to low battery mode, the system will switch to the internal battery automatically for power supply to ensure uninterrupted operation all-day. Meanwhile, the DC interface can also support external power input.

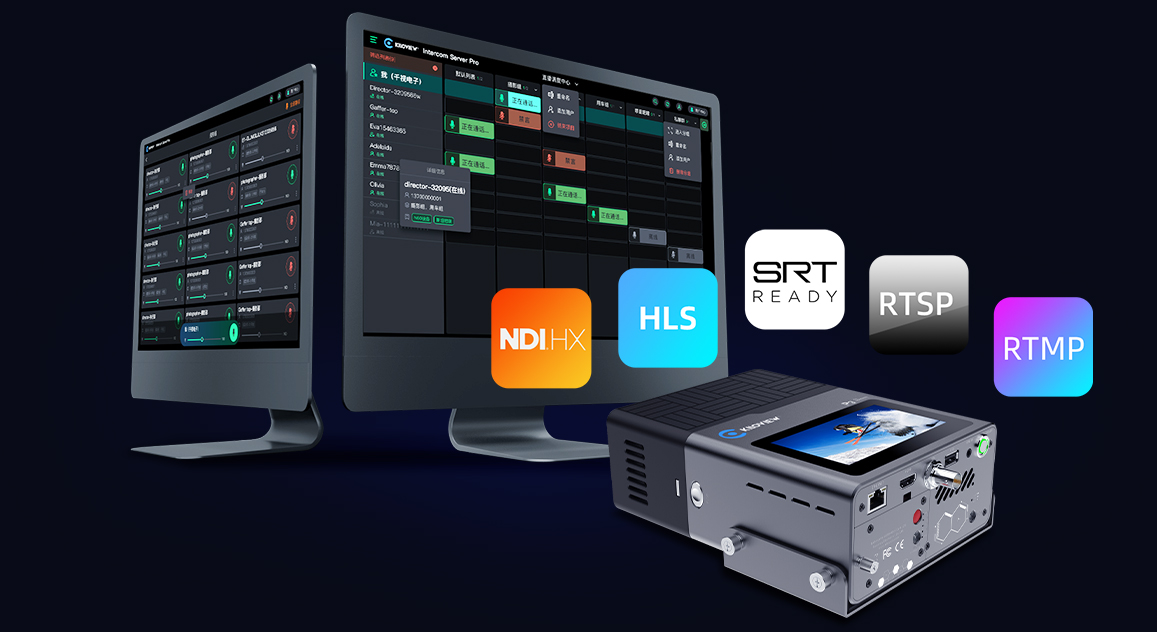

Open Compatibility
KIS Pro and Personal Hotspot Functionality Supported

All mainstream transmission protocols support:

You can transmit signals in various format freely , such as NDI HX/SRT/RTMP/RTMPS/RTSP/RTP/HLS/TS-UDP, etc. When the signal reaches the studio or production center, you don’t need to purchase a receiving server additionally, by just using any brand/model decoder to complete monitoring work.

*At present, the NDI HX direct/support function is easier to implement in “Local Deployment”. If your server is deployed in the cloud, you will need to carry out penetration network strategy from public network to local network. Consult your network engineer or Kiloview technical support team for details.

Support the KIS Pro Intercom system: Synchronous voice intercom allow your seamless command and dispatch work.

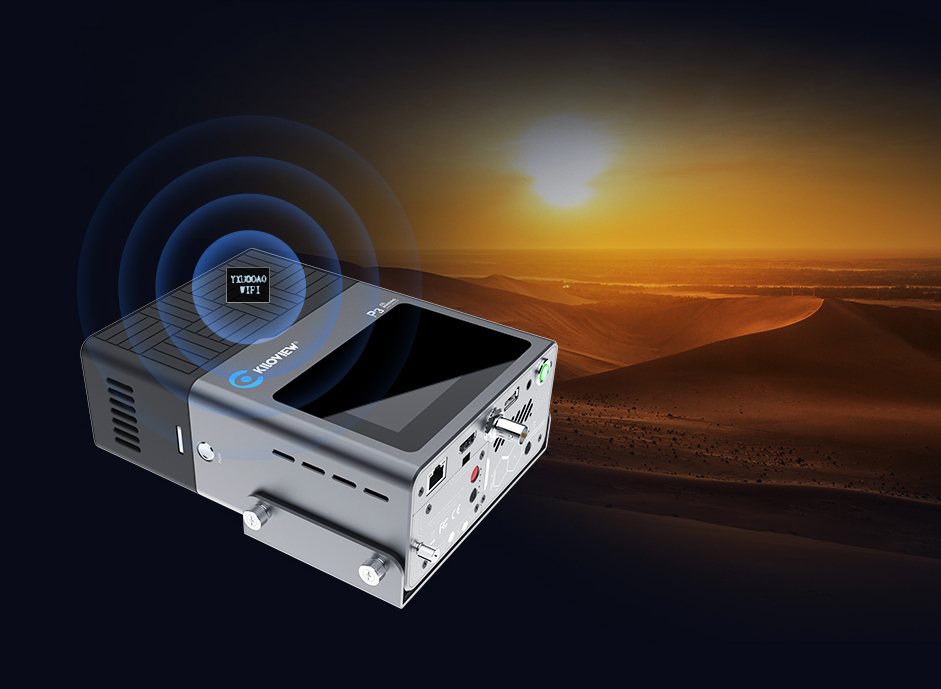

Not only device, but also personal hotspot: Now, you can easily open P3’s personal hotspot function with just one click, achieving the most efficient remote management of devices.

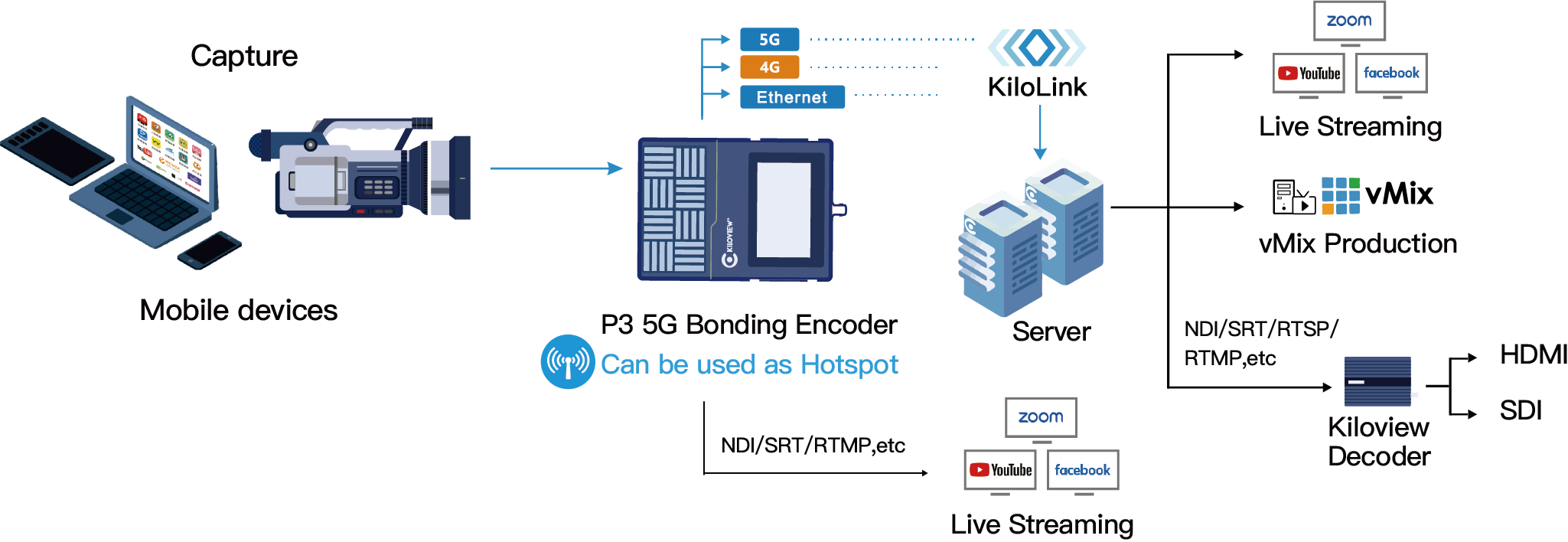

P3 Multi-Streaming Mode: Cost-effective Wireless Encoder for Live Streaming

P3 eliminates the need for aggregation platforms, automatically selecting the optimal network link (WiFi/Ethernet/SIM card) and directly stream four video streams to major live streaming platforms from the device. It is compatible with mainstream protocols such as NDI HX, SRT, RTMP, RTMPS, RTSP, RTP, HLS, and TS-UDP. Not only does it offer the low-latency transmission advantages of NDI HX, but it also enables remote interaction via the SRT protocol.

When the P3 is used with KiloLink Server Pro, it enables multi-link intelligent aggregation transmission. This is especially important in high-demand scenarios like large events and sports competitions. Through intelligent aggregation, the P3 ensures stable transmission of live content even in complex network environments, allowing viewers anywhere to enjoy a high-quality streaming experience.

P3 Multi-Streaming Mode: Cost-effective Wireless Encoder for Live Streaming

P3 eliminates the need for aggregation platforms, automatically selecting the optimal network link (WiFi/Ethernet/SIM card) and directly stream four video streams to major live streaming platforms from the device. It is compatible with mainstream protocols such as NDI HX, SRT, RTMP, RTMPS, RTSP, RTP, HLS, and TS-UDP. Not only does it offer the low-latency transmission advantages of NDI HX, but it also enables remote interaction via the SRT protocol.

When the P3 is used with KiloLink Server Pro, it enables multi-link intelligent aggregation transmission. This is especially important in high-demand scenarios like large events and sports competitions. Through intelligent aggregation, the P3 ensures stable transmission of live content even in complex network environments, allowing viewers anywhere to enjoy a high-quality streaming experience.

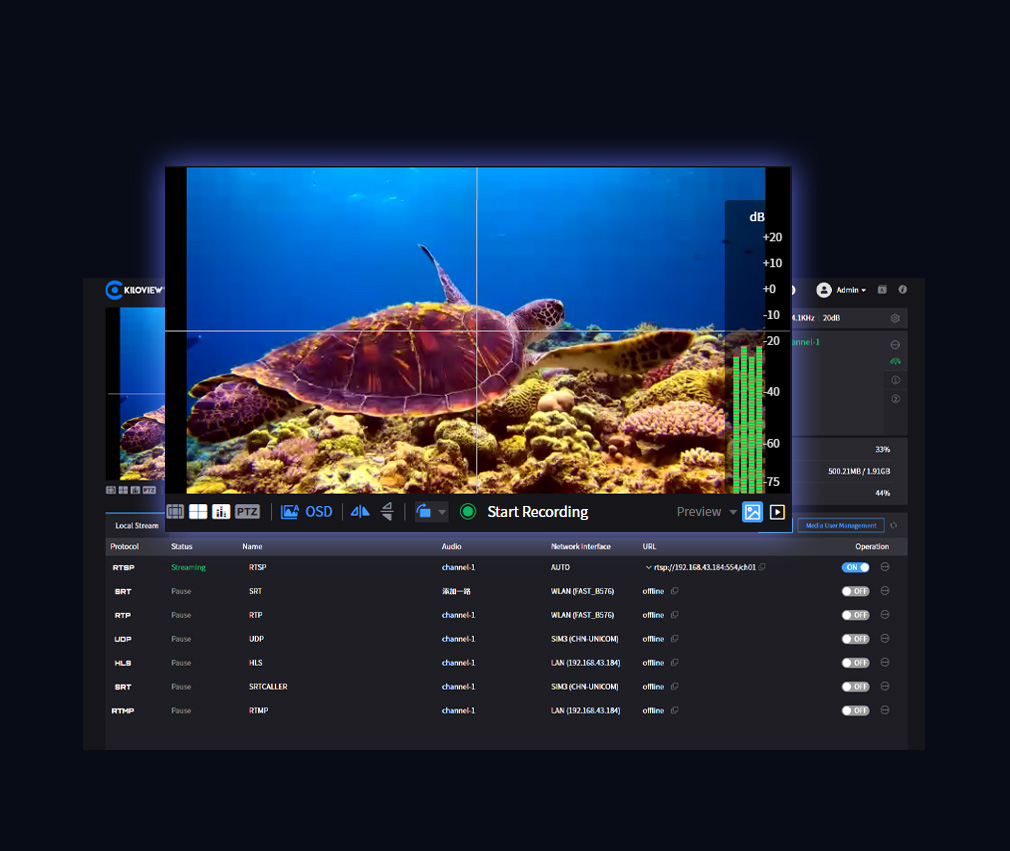

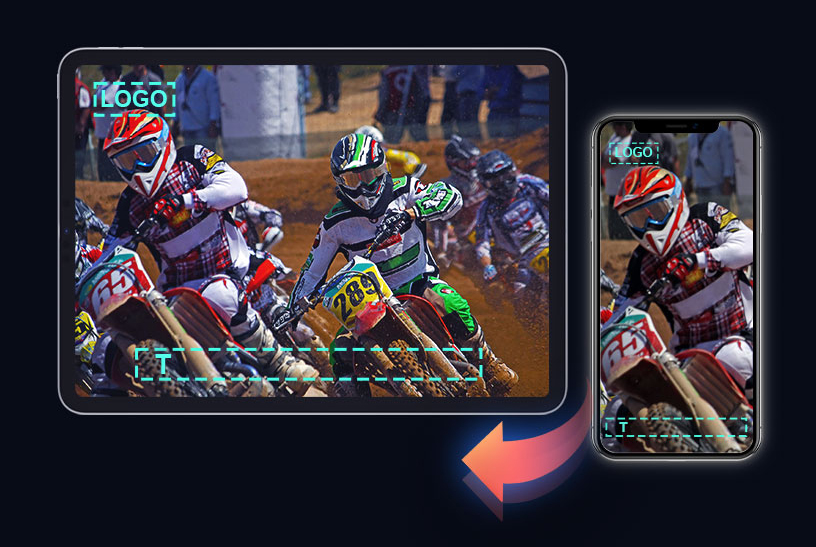

Professional Video Processing for a Superior Live Streaming Experience

With features like video cropping, rotation, and support for trends such as slow-motion and vertical streaming, P3 caters to a variety of live streaming needs. Live streaming is made easy with functions like volume gain adjustment, mirror effects, safety borders, center lines, color adjustments, logo/text overlays, and VU meter, ensuring your stream is both clear and smooth.

Professional Video Processing for a Superior Live Streaming Experience

With features like video cropping, rotation, and support for trends such as slow-motion and vertical streaming, P3 caters to a variety of live streaming needs. Live streaming is made easy with functions like volume gain adjustment, mirror effects, safety borders, center lines, color adjustments, logo/text overlays, and VU meter, ensuring your stream is both clear and smooth.

Innovative Interactive Design One-touch for Everyting

Large-size LCD:

Easy Device Monitoring/ Quick Operation

P3 is equipped with a 4.3-inch touch LCD screen, which is used for previewing input images of camera in real-time, and receiving images of feedback video*. Through the screen, users can view information in real-time, such as device IP address, network status, video resolution, Tally status, device CPU, temperature, as well as the encoding status of video and audio.

*The function is on schedule and will be supported through further firmware upgrade.

Portable Backpack Design

Your Convenient Live Streaming Assistant for All Scenarios

The compact and portable backpack design not only has  rain protection, sun protection, and shock proof, but also can adapt to various live streaming scenarios such as in the shed, on the street, and outdoors (limited time, free in the package).

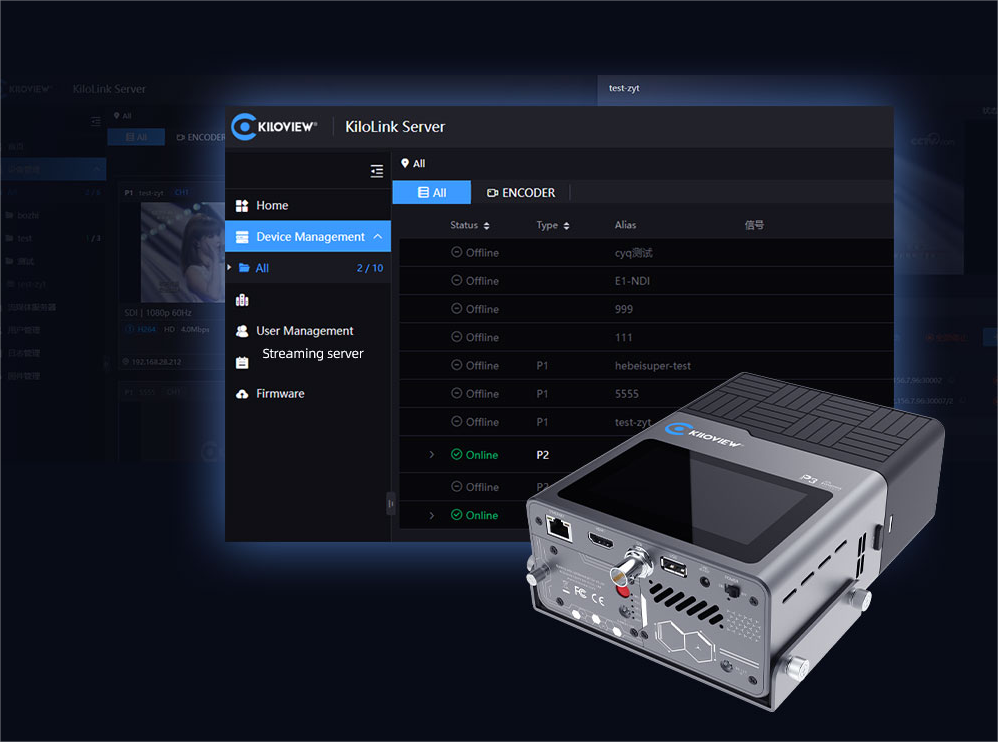

KiloLink Server Pro

The Completely Free Bonding Service Platform
from Conversion to Production

KiloLink Server Pro integtates centralized management and bonding services, distinguishing similar products in the market or its previous generation, and is decided to be permanently free for users. Its main functions include: self-hostable severs, automatic bandwidth load balance, centralized visualization of device management, direct NDI HX streaming+unimited streaming channels, and no need for dedicated receivers on the back-end. These unique features enable users to enjoy stable and reliable bonding live streaming with zero cost.

KiloLink Server Pro
播放视频

One-stop Centralized Device Management Platform

KiloLink Server Pro serves not only bonding, but also integrates all KiloView products into one platform. It enables centralized online management, real-time status monitoring, remote parameter configuration, batch firmware management & upgrades. After deploying the server, users can complete unlimited device management and operations through the Web. It is compatible with mainstream browsers such as Chrome, Edge and Safari, allowing users to intuitively access device backends, check bonding link statuses, and manage streaming services anytime, anywhere.

Learn more

Find the Right Live-streaming Assistant for You

More Details

Your Ultimate Choice for Outdoor Streaming

Kiloview P3 is a new generation of 5G bonding video encoder based on KiloLink, supporting multi connections bonding: 4-channel 5G cellular network, WIFI and Ethernet. P3 is equipped with dual video inputs of 3G-SDI and HDMI. With resolution up to 4Kp30 through its HDMI input and up to 1080p60 through its SDI input.

Upgraded H.265 encoding capability and perfectly adaption to KiloLink Server ensuring the best quality of multi-protocol live streaming and video transmission.

Up to 6-channel Connections Bonding

With P3’s modular design, end users can flexibly pick the 5G/4G/WiFi modems to adapt the most challenging field scenarios. P3 supports up to 6 connections bonding to maximize the video transmission capacity: 4-channel 5G cellular, WiFi and Ethernet. Each 5G modem can also be replaced by 4G modem or WIFI modem to achieve the bonding of up to 10* IP Connections.

Besides, P3 can support Wi-Fi hot-spot for data and file transmission over 4G.

*: It can be expandable up to 10-channel in the future.

HDMI+3G-SDI with H.265 & H.264 Encoding

P3 supports H.265 and H.264 encoding. H.265 (HEVC) encoding can achieve a lower encoding rate, saving over 50% bandwidth comparing with H.264 under the same conditions. It also supports HDMI input up to 4Kp30Hz and 3G-SDI input up to 1080p60.

Internal antenna

At the hardware level, P3 features an Internal anti-interference antenna design, effectively resisting signal interference in complex electromagnetic environments and ensuring stable, reliable, and unimpeded transmission of video data. Moreover, to guarantee consistent performance under prolonged high-load operations, P3 is equipped with a highly efficient internal cooling fan, enabling stable operations even in high-temperature, complex, and harsh environments.

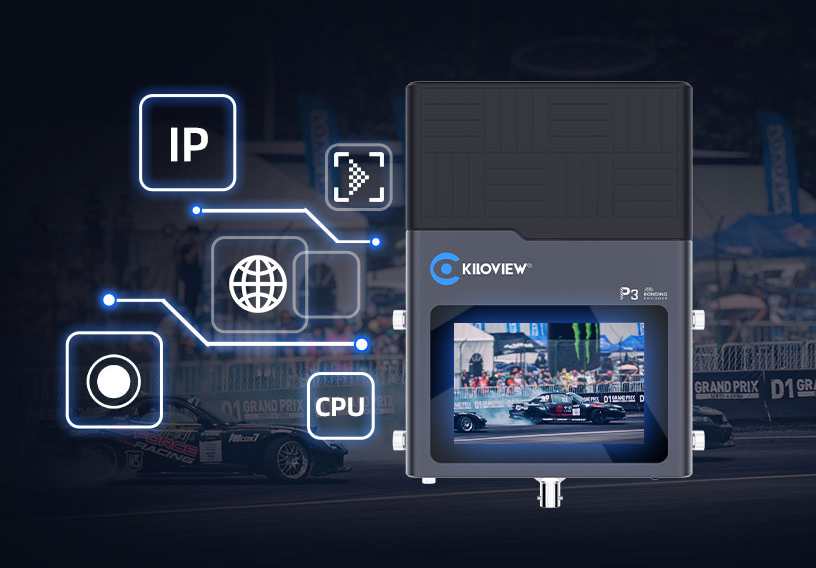

4.3-inch Touch LCD Screen

P3 is equipped with a 4.3-inch touch LCD screen for real-time viewing of IP address, network status, video resolution, Tally status, CPU, and temperature. You can preview the input video picture in real-time through KiloLink, a proprietary technology innovated by Kiloview. You can also receive 1CH of return video by purchasing the extra service.

Constantly Working with Dual Battery Module

P3 is equipped with dual battery module (the power of a single battery is up to [email protected] 43.2W, which can keep running for more than 4 hours under the condition of full operation of 4-channel 5G cellular network). When the power of external battery runs out, it will automatically switch to the internal battery , which can ensure the power supply and achieve all-day operation.

In addition, P3 supports external power input.

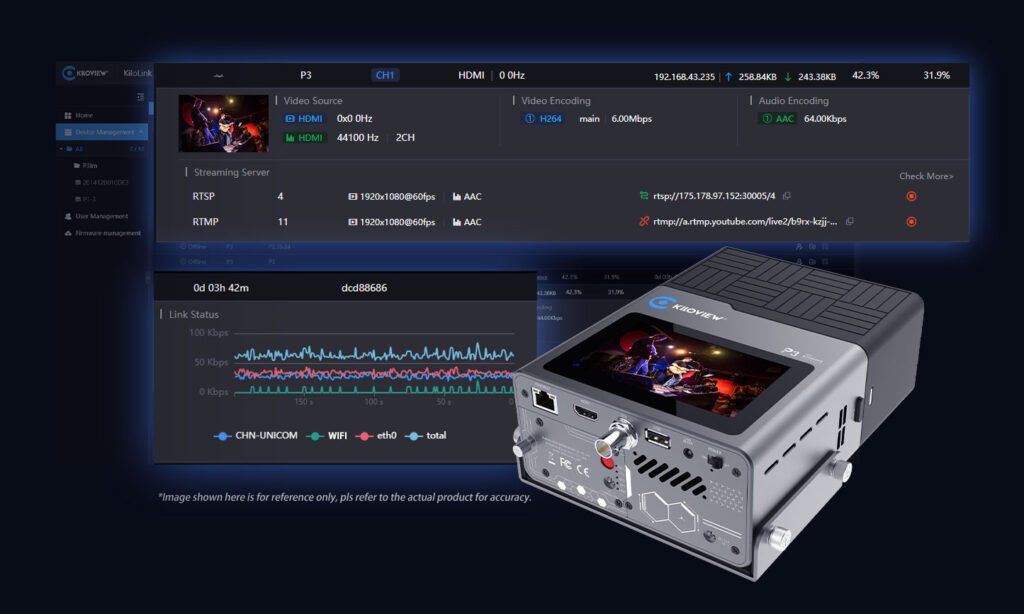

KiloLink Server
Safe and flexible bonding software

With enhanced KiloLink Server Pro, you can manage all your registered devices on the server end, such including monitoring device status, previewing, settings, firmware updating. Real time connection status and data statistics are also available on server end. Kilolink Server Pro can also support streaming service for P series with up to 8CH of protocol conversion, etc.

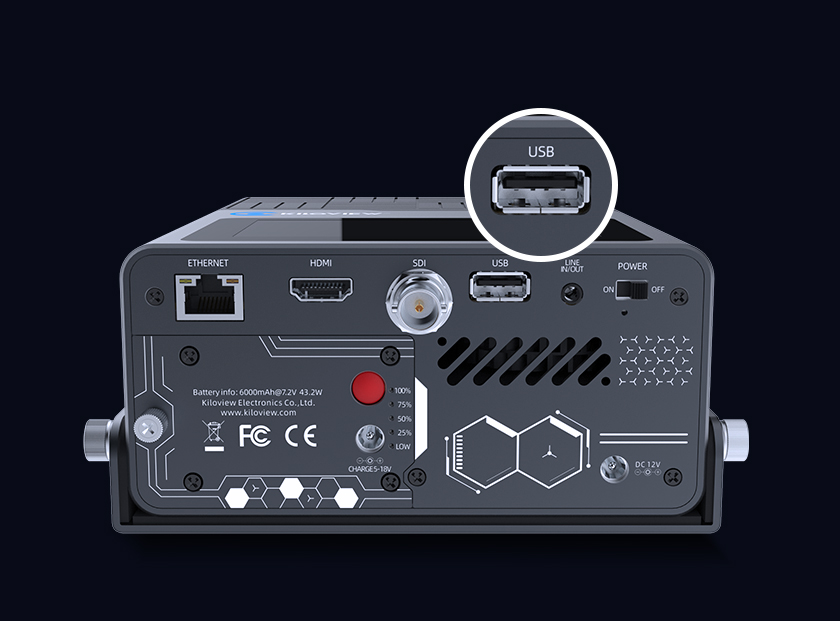

Capture and Recording Storage

P3 supports SD card recording, USB flash drive recording, and external hard drive recording, with MOV and MP4 file formats supported for recorded files. Additionally, users can view the recording progress and status in real time through the small LCD screen.

Application Scenarios

Outdoor live streaming, outdoor program production, news reporting, emergency command, vehicle-mounted mobile video transmission, multi-media project engineering, hospital external network video transmission, and other scenarios requiring wireless video transmission.

Marathon

Wedding

House of Worship

Outdoor

Official Standard

Pro-Level Video Processing

P3 can process rotate/crop and add custom overlays including images, texts or other OSD to the output video for advanced applications, it’s suitable for your webcast.

Reliable Recording and Streaming

P3 supports streaming and recording simultaneously for post-production and further application.

Audio And Intercom

P3 supports voice intercom between all Kiloview devices and controlled PC/phone, with featured KIS Intercom Server either on premise or on cloud, making anytime anywhere live streaming available.

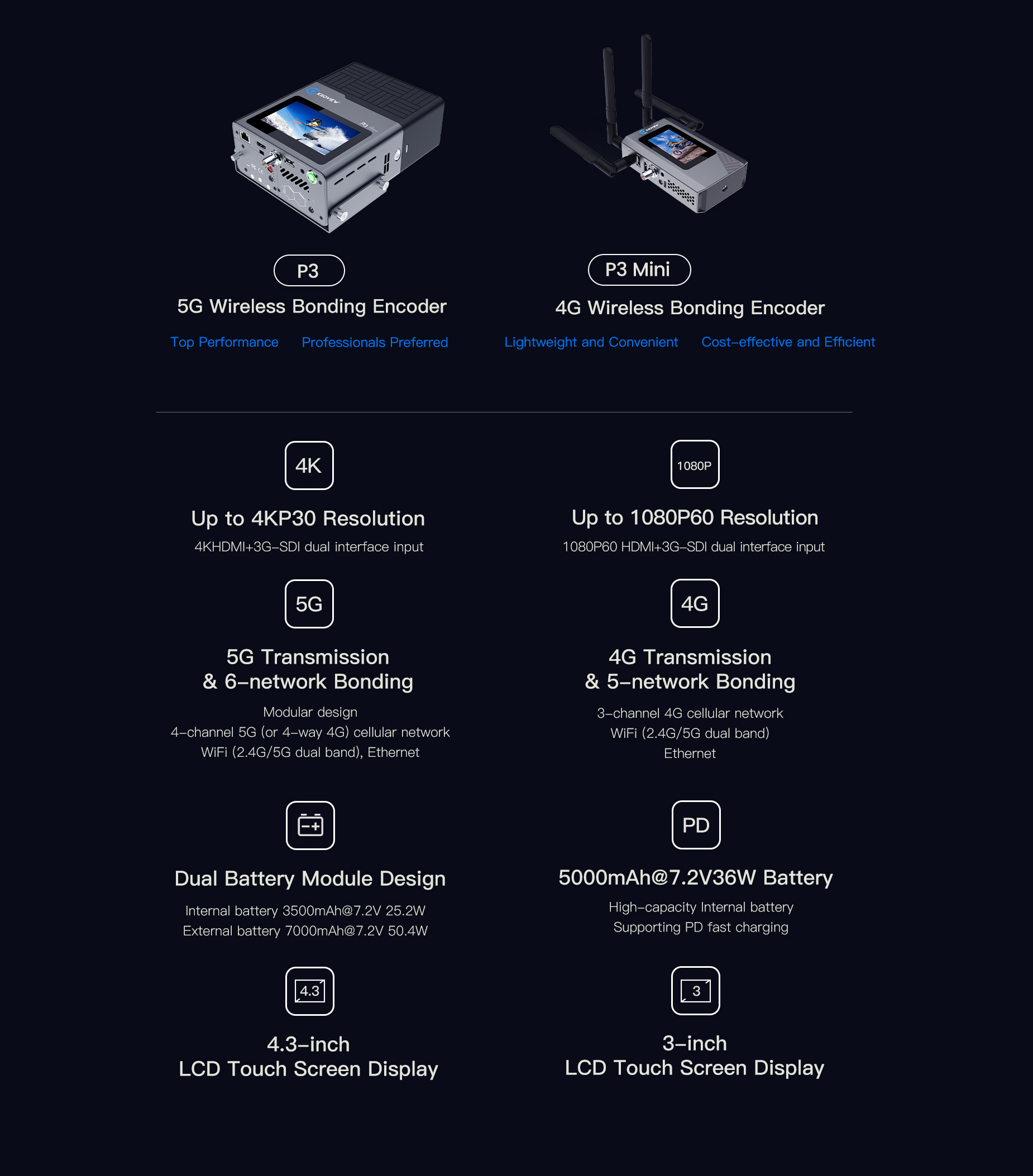

5G/4G Bonding Encoder Tech Specs

ModelP3 miniP3
Video Input1*1080P60 HDMI
1*3G-SDI		1*4KP30 HDMI+1*3G-SDI
Video EncodingH.265/H.264H.265/H.264
ResolutionUp to 1080P60Up to 4KP30
Audio Port1*3.5mm Line in or SDI/HDMI embedded1*3.5mm Line in or SDI/HDMI embedded
Multi-channel
Audio Encoding		HDMI: 4 channels
SDI: 4 channels
Line in: 1 channel		HDMI: 4 channels
SDI: 4 channels
Line in: 1 channel
Bonding
Performance		3CH 4G cellular network, WIFI (2.4G/5G dual band)，
Ethernet		 WiFi/ 4 channels of 5G(Or 4 channels of 4G)
cellular, WiFi (2.4G/5G), Ethernet
ProtocolsNDI HX/SRT/RTMP/RTSP/RTP/HLS/TS-UDP
(with KiloLink Server Pro)		NDI HX/SRT/RTMP/RTSP/RTP/HLS/TS-UDP
(with KiloLink Server Pro)
Network4G / WiFi / Ethernet5G / 4G / WiFi / Ethernet
Modular Design/DIY 5G/4G communication modules
WiFi/SD storage modules, and battery modules
Display3" LCD touchscreen4.3" LCD touchscreen
Recording/Storage USB expansionSD card and USB expansion
Power SupplyDC 12V/3A PD Fast ChargingDC 12V/3A
Battery4900mAh 7.2v 35.28W
Built-in 3500mAh 7.2V 25.2W battery
External 7000mAh 7.2V 50.4W battery
Power Consumption16w20w
Voice IntercomSupportSupport
ManagementWeb/KiloLink Server ProWeb/KiloLink Server Pro
ButtonPowerPower
Weight 600g 2000g
Dimension (mm)138*85*35mm216.8*143*68mm
Working
Temperature		-15℃~45℃-15℃～45℃
