Kiloview N4 HDMI to NDI codec supports bi-directional conversion between 1080p60 HDMI and Full NDI. It can both encode 1080p60 HDMI signals into Full NDI stream for output and decode Full NDI stream and output 1080p60 HDMI on your screen. Kiloview N4 can help you gain a leading edge in the IP-based high-definition video industry.
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
*N4’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
*N4’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
*N4’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time

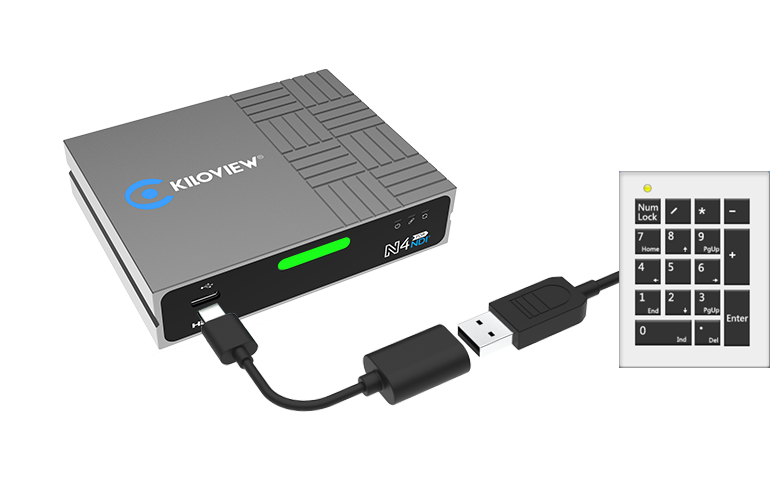

In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera – the cheapest PTZ Keyboard you can get.
Kiloview N4 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required

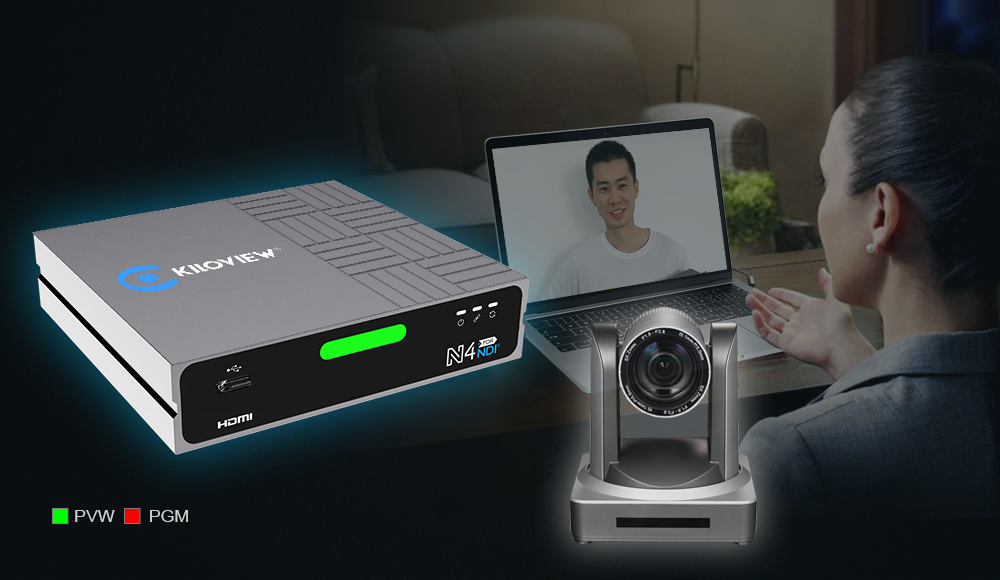

N4 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.

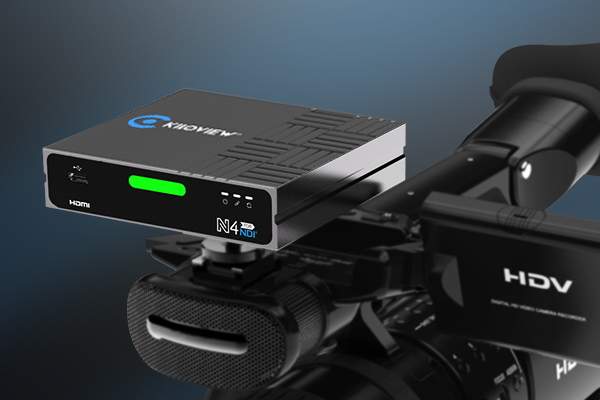

It has an exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.

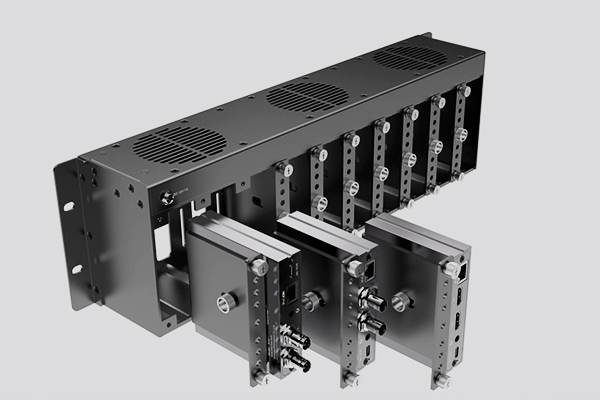

The groove design on both sides facilitates the rackmount installation in 1U/3U
| Resolution | 4KP60 | 4KP30 | 1080P60 | 720P60 |
|---|---|---|---|---|
| Default Bitrate | 250Mbps | 200Mbps | 125Mbps | 90Mbps |

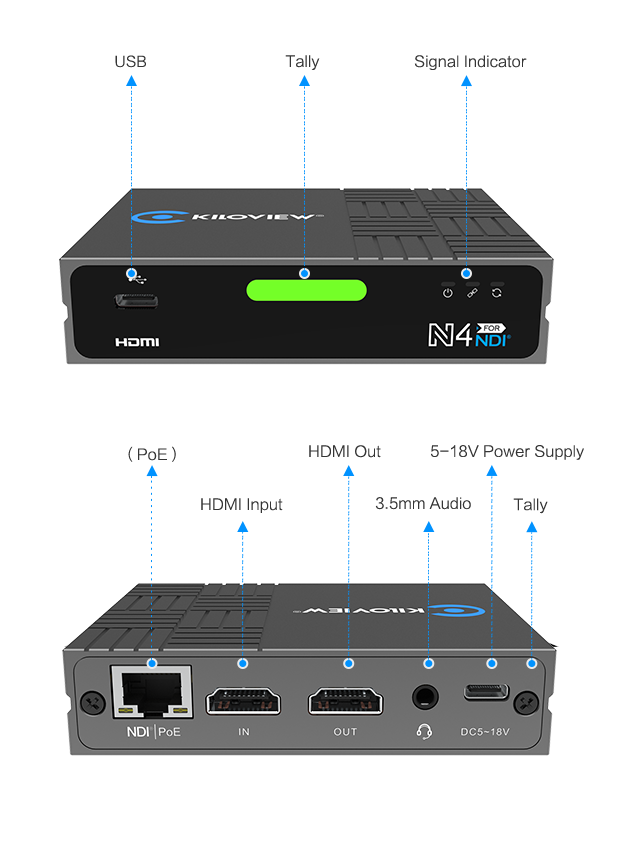

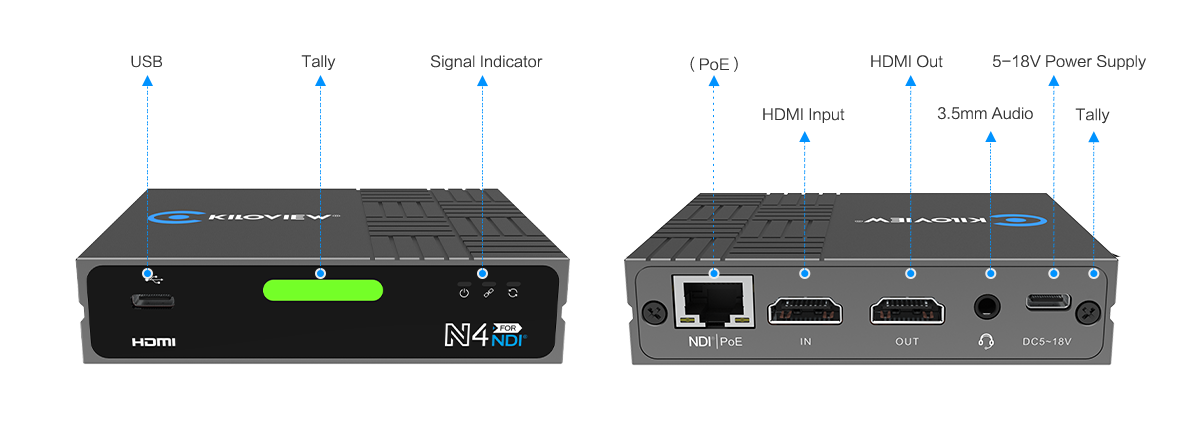

| Model | N4 |
|---|---|
| Video input | 1*HDMI |
| Video output | 1*HDMI（Loop or decoding output） |
| Audio port | 1*3.5mm |

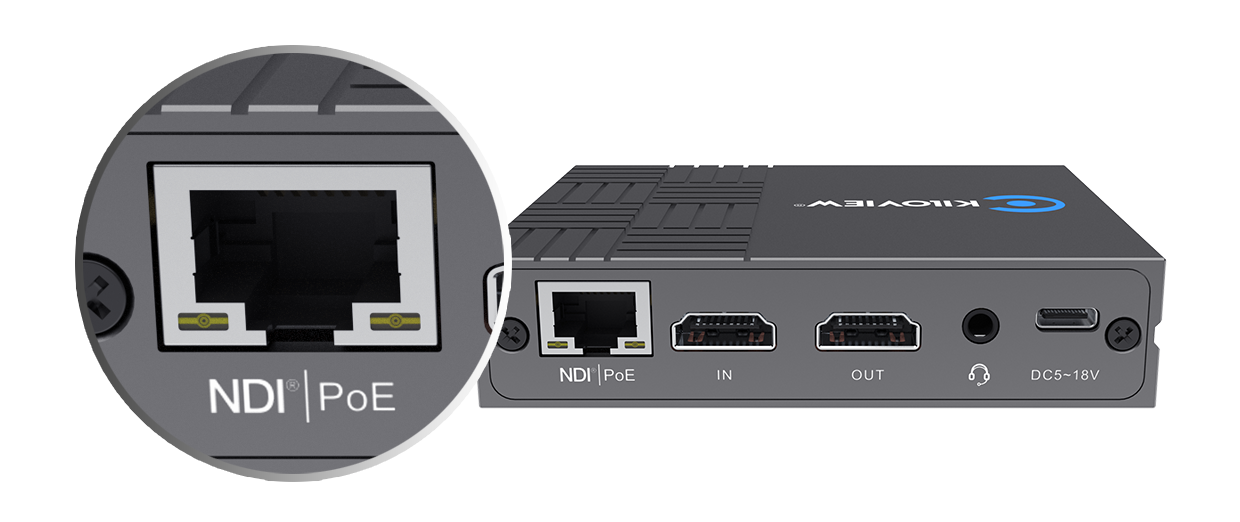

| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Up to 1080p60 (backward compatible with SD/HD/VESA) |
| NDI® codec capacity | 1*NDI® encoding or 1x NDI® decoding |
| NDI®CODEC feature | FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60 |
| LED indicator | Tally light, power light and status connection light |
| Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
| Voice intercom | Customization |
| PTZ control | Network PTZ and Serial Port |
| DHCP | Support |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Power consumption | 6w |
| Operating temperature | -20~45℃ (Storage temperature: -20~70℃) |
| Dimension | 100*80*24 mm (3.94”*3.15”*0.94”) |
| Support Downloads | Docs & Firmware |
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40 | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
| E1 | NDI HX | SDI | 1080P60 | ||
| E2 | NDI HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
| D260 | NDI HX | SDI+HDMI | 1080P60 |
