Multi-CH bonding

The P3 mini 4G Wireless Bonding Encoder is the perfect outdoor live streaming device built on patented KiloLink bonding transmission technology, serving also as the upgraded version of P1//P2. The P3 mini features professional-grade antenna isolation design, allowing for the effective bonding and connection of multiple channels (supporting 3*4G cellular network + 1WiFi + 1*RJ45 Ethernet port), boasting exceptional anti-interference capability and stable transmission performance. It is equipped with dual input interfaces for 3GSDI and HDMI, supporting up to 1080P60 video resolution. Additionally, the P3 mini is equipped with a 5000mAh battery with 4-hours continuous operation and supports PD fast charging, fully meeting versatile application scenarios.

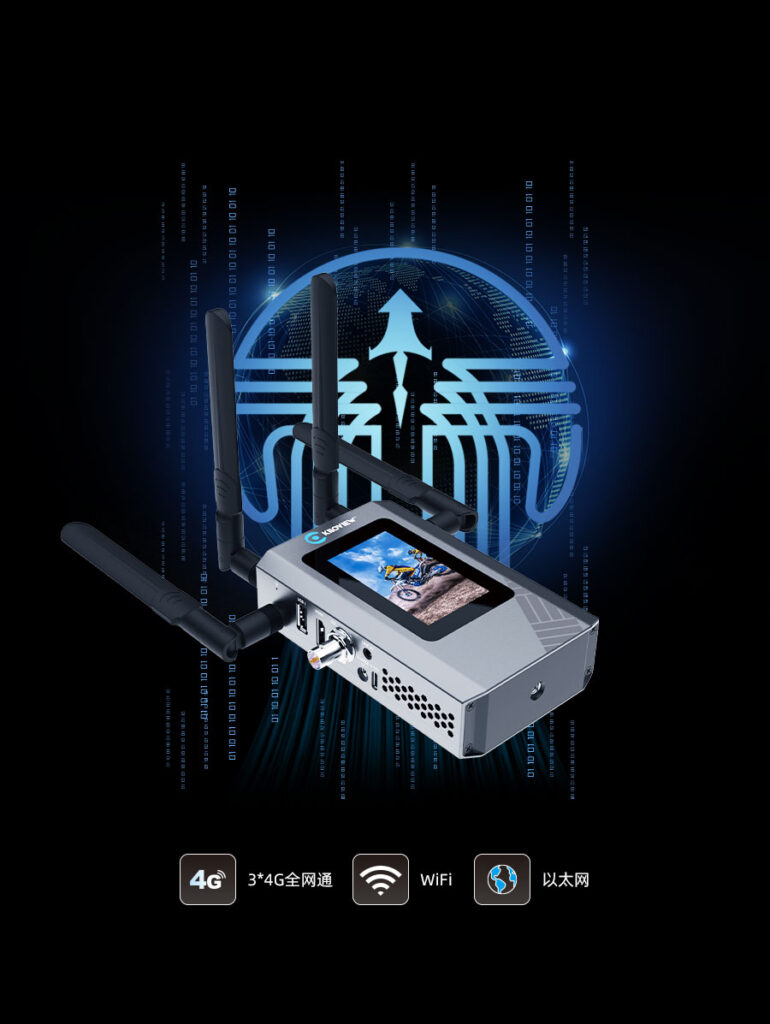

Efficient, Stable, and Secure
Bonding Transmission

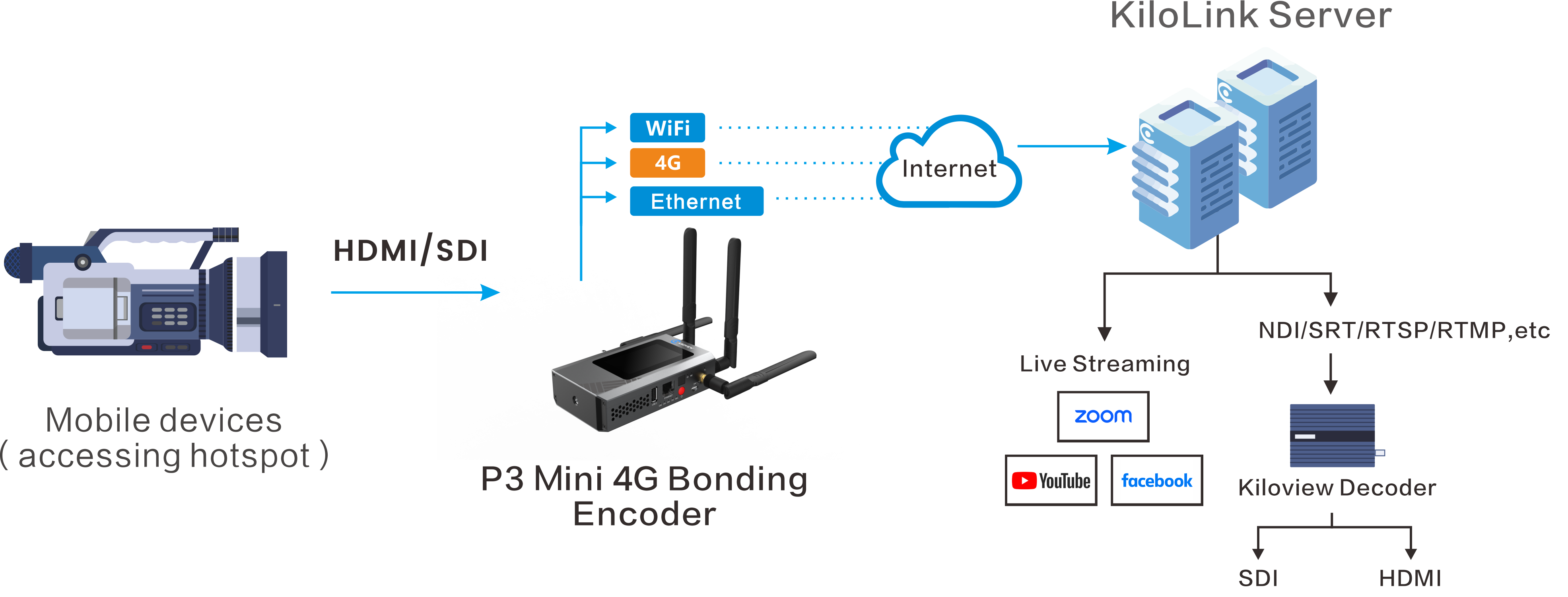

The P3 mini is equipped with KiloLink’s patented multi-link bonding transmission technology, which utilizes encryption algorithms to achieve functions such as bandwidth overlay, load balancing, and dynamic bitrate auto-adjustment. This ensures seamless bonding of five networks (3*4G cellular network + WiFi + Ethernet), enabling uninterrupted live streaming experiences. Users can flexibly choose between private, local, or cloudbased deployment of bonding servers to ensure efficient and stable audiovisual transmission. And most importantly, the use of KiloLink is free of charge.

Professional Antenna Design
for Superior Anti-Interference

To ensure the stability of outdoor signal transmission, the P3 mini undergoes professional grade antenna isolation design. This minimizes adverse effects such as screen freezing and intermittent sound caused by signal issues, ensuring the stability and reliability of signal data transmission.

PD Fast Charging for Extended Battery Life

Equipped with a 5000mAh  battery and supporting PD fast charging, the P3 mini not only provides sufficient battery reserves but also rapidly replenishes power. This enables continuous operation, ensuring seamless support for outdoor LIVE production.

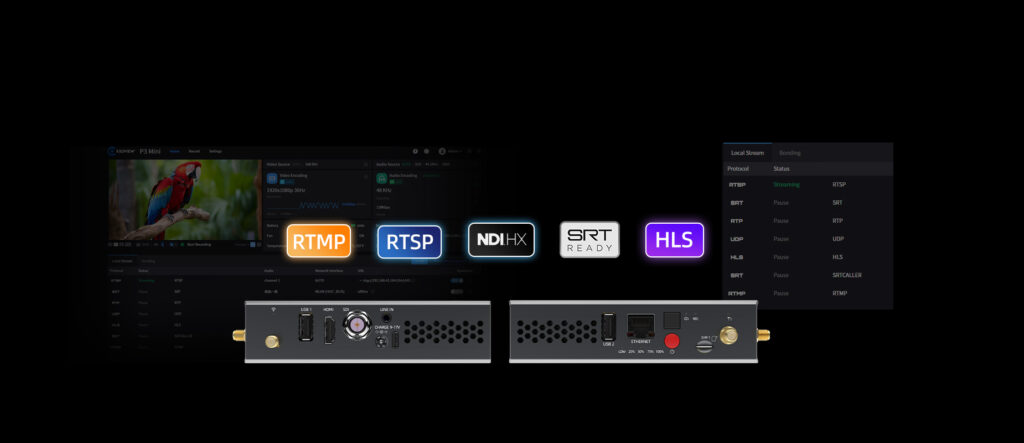

H.265 Encoding, Dual Interface Inputs for SDI+HDMI

Supports H.265/H.264 encoding formats, with a maximum resolution of 1080P60 HDMI and 3G-SDI dual interface inputs. It is comprehensively supporting mainstream media protocols such as NDI HX/RTSP/RTMP/SRT/HLS. Combined with the KiloLink Server bonding platform, it  simultaneously supports stable, highquality, low-latency streaming on multiple mainstream live streaming platforms.

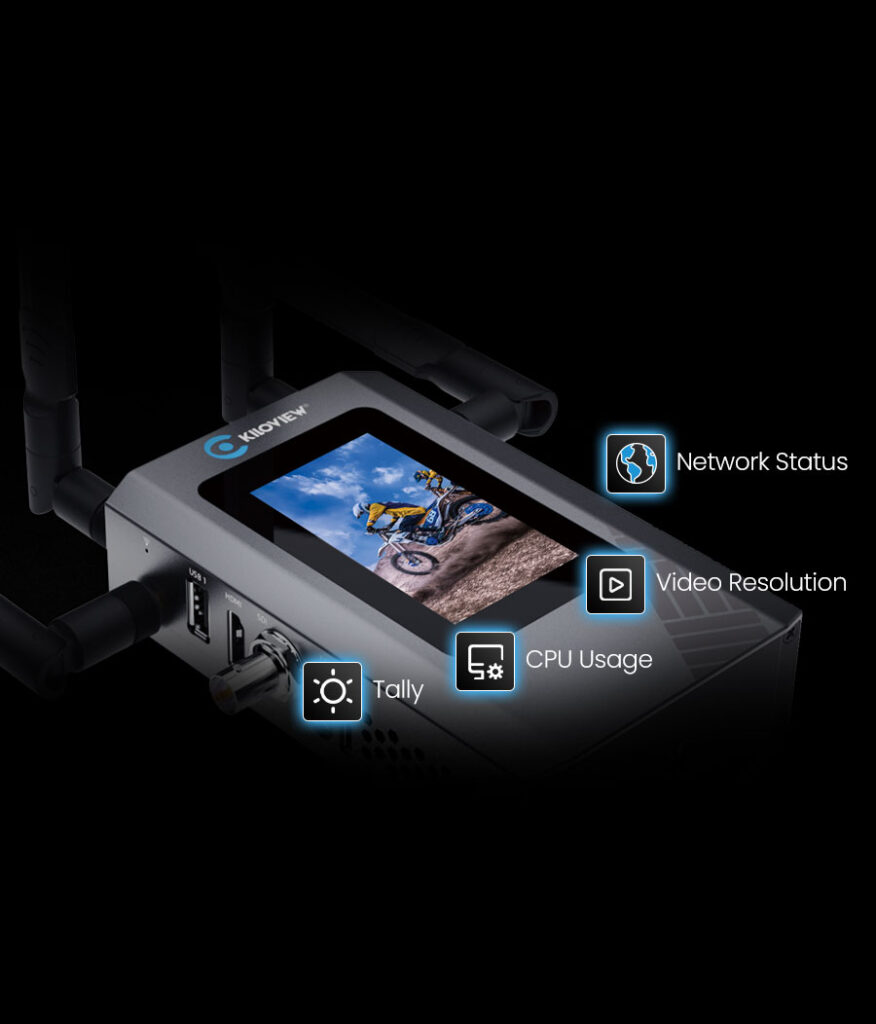

High Sensitivity Touchscreen LCD Display

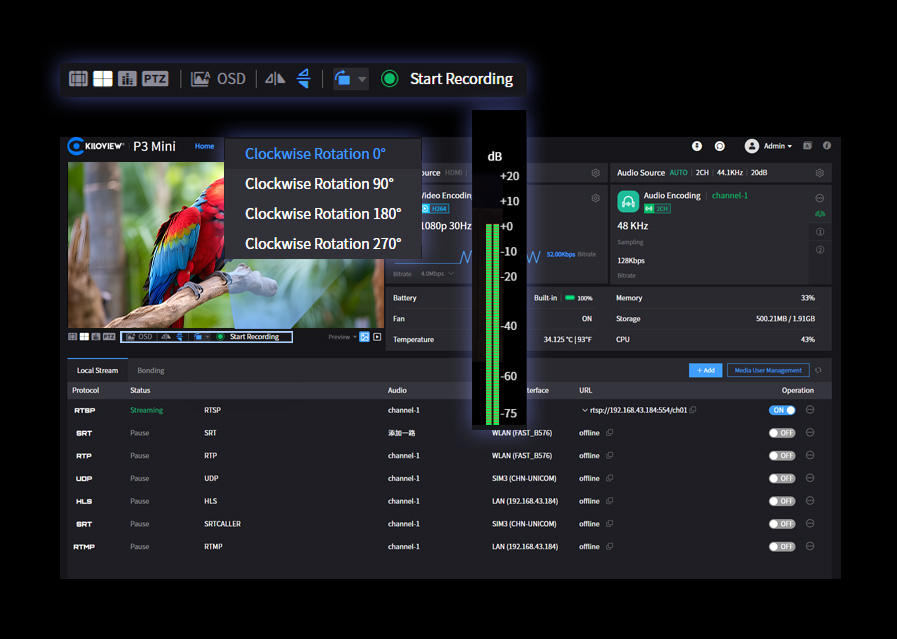

Equipped with a 3-inch touchscreen, users can preview video in realtime and easily monitor the device’s status, including IP address, network status, video resolution, Tally lights, CPU usage, device temperature, etc.

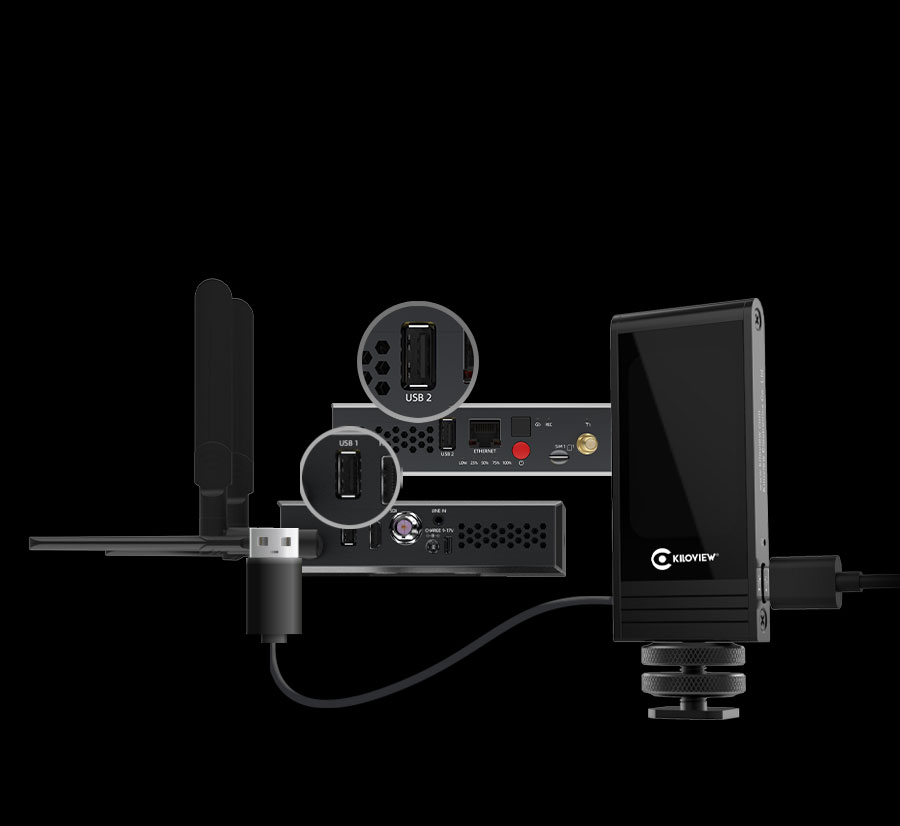

Dual USB Ports
Offering Infinite Possibilities

The P3 mini is equipped with dual USB ports, allowing flexible expansion to connect keyboard inpu, PTZ camera control, and USB recording functions, achieving integrated multifunctional operation.

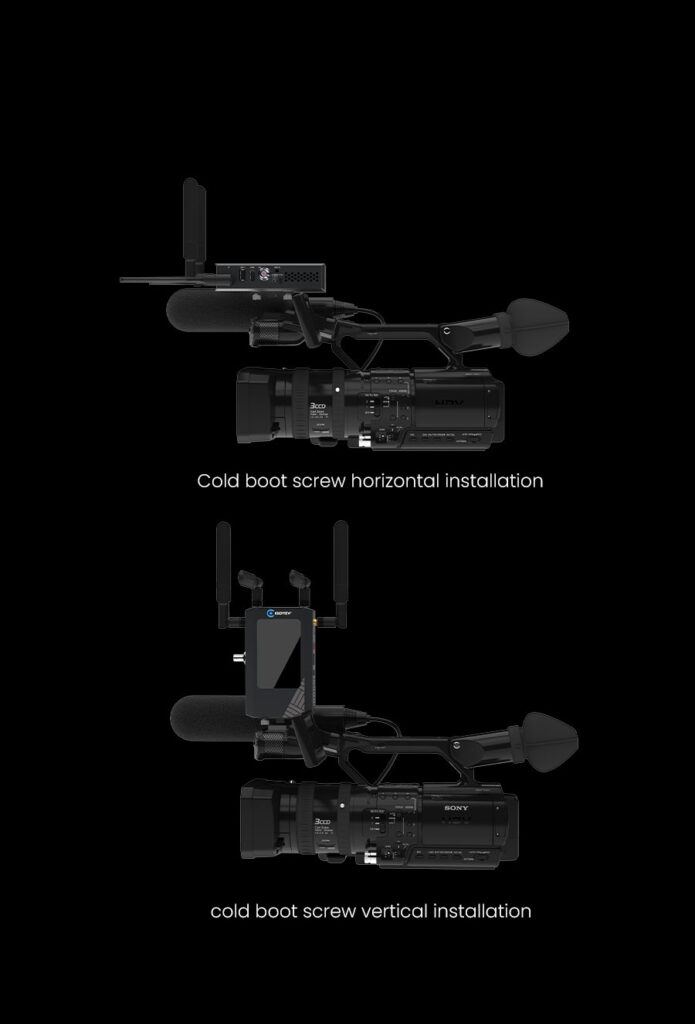

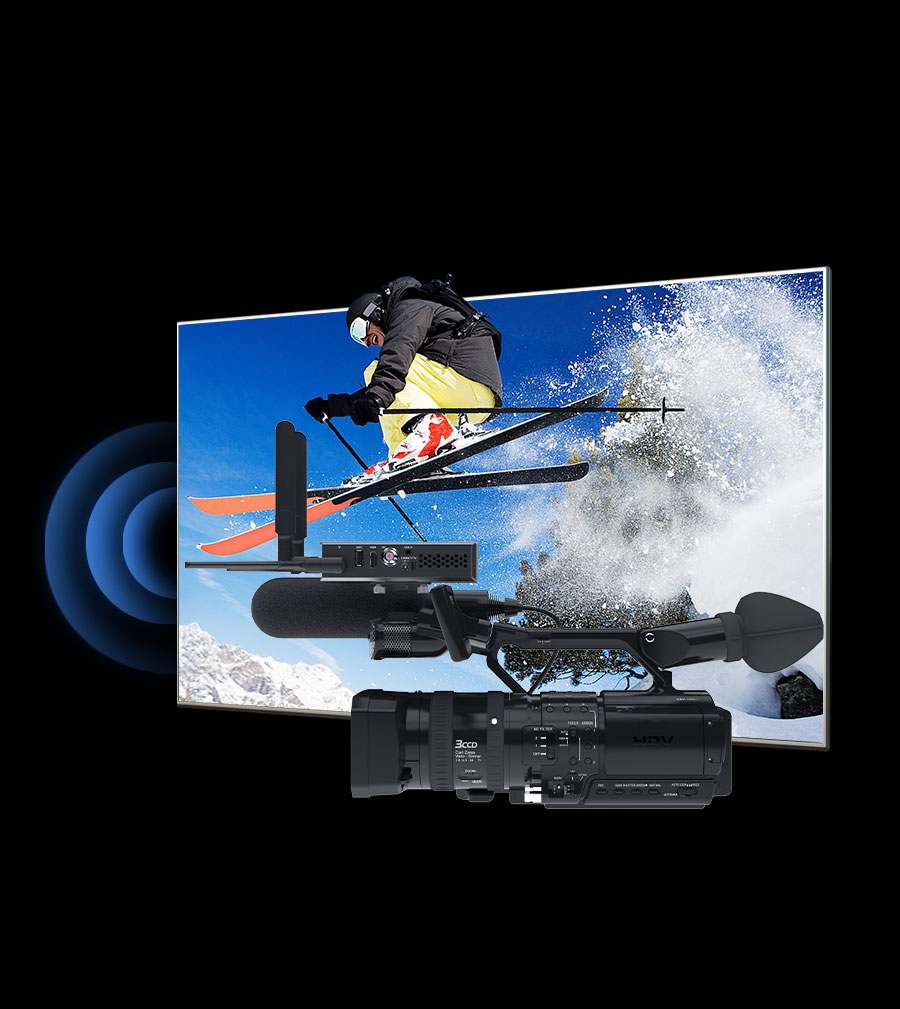

Compact Size, Supports Multiple Mounting Options

The P3 mini is portable, supporting both vertical and horizontal installation. It seamlessly integrates with various cameras, allowing for perfect completion of live streaming tasks anytime, anywhere.

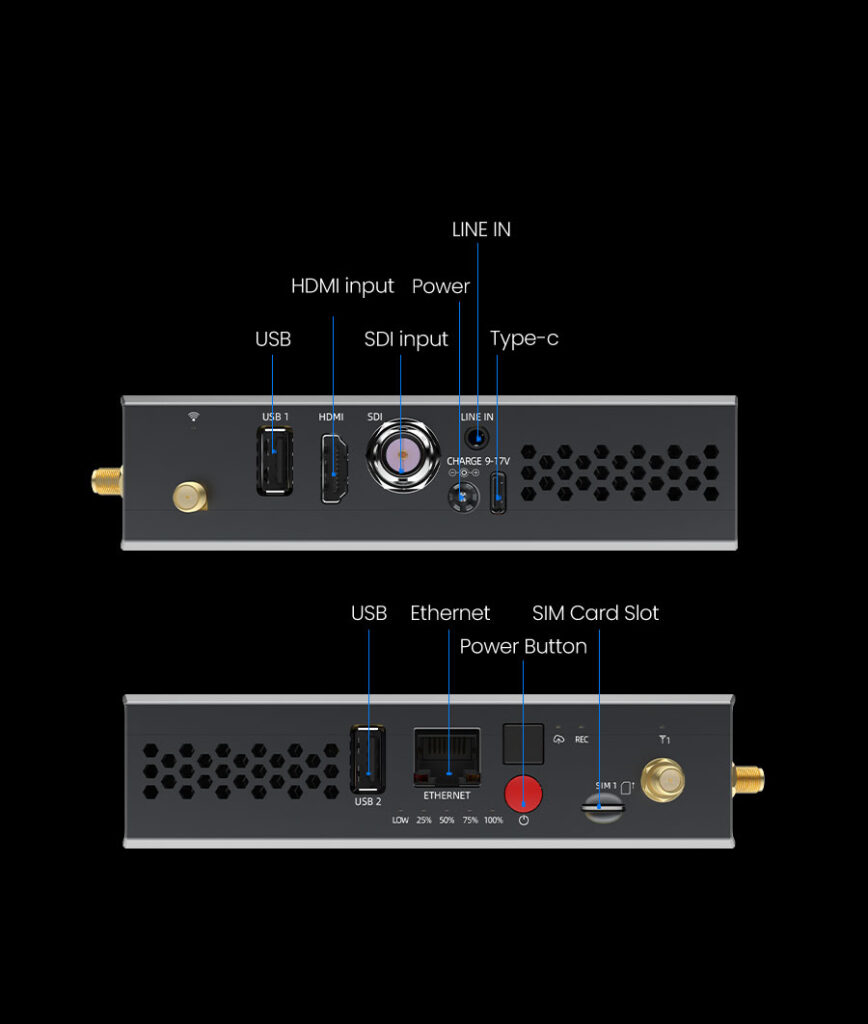

Interfaces

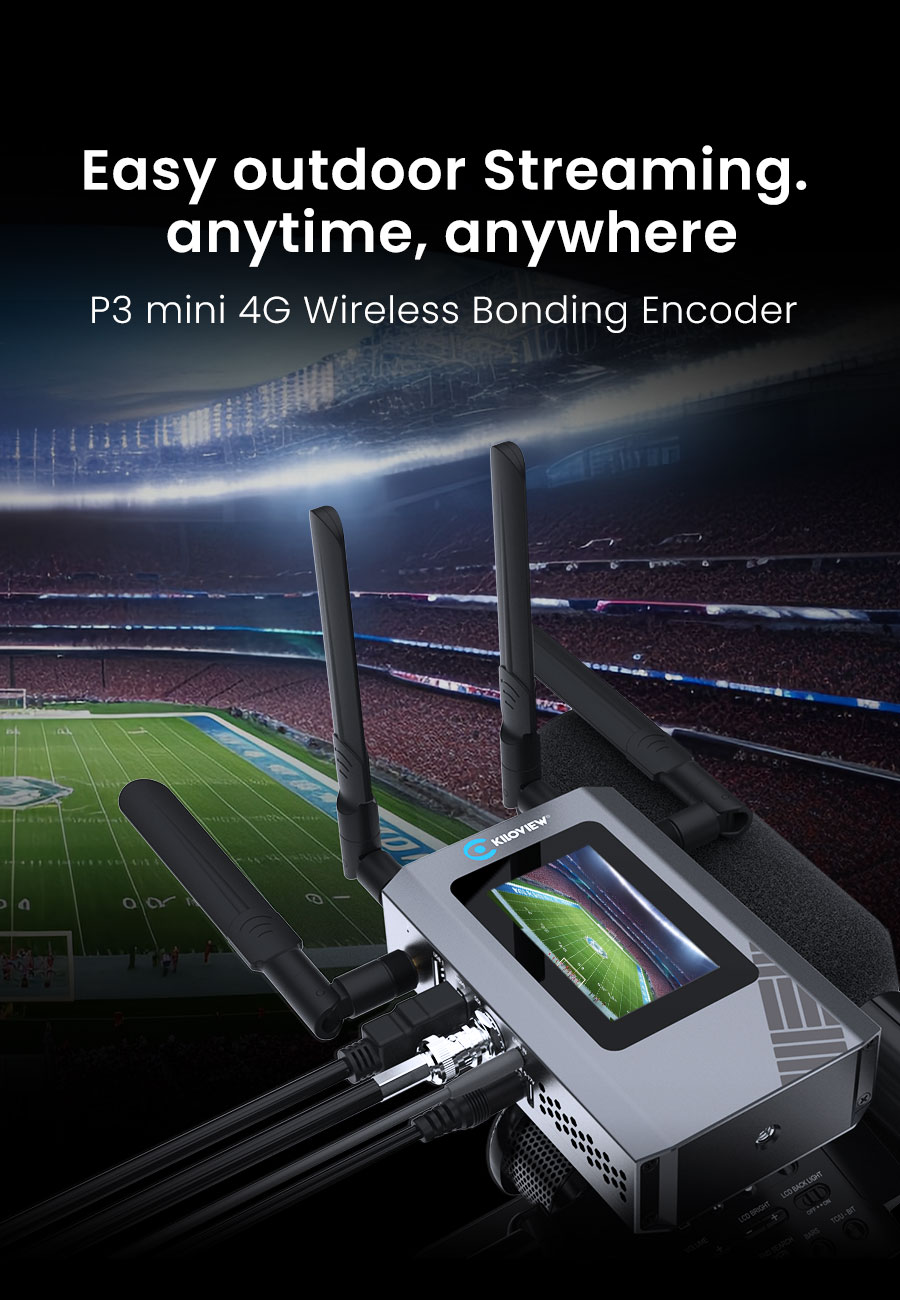

Easy outdoor Streaming. Anytime, Anywhere

P3 Mini 4G Wireless Bonding Encoder

播放视频

Multi-CH bonding

The P3 Mini 4G Wireless Bonding Encoder is the perfect outdoor live streaming device built on patented KiloLink bonding transmission technology, serving also as the upgraded version of P1/ P2. The P3 Mini features professional-grade antenna isolation design, allowing for the effective bonding and connection of multiple channels (supporting 3*4G cellular network + 1WiFi + 1*RJ45 Ethernet port), boasting exceptional anti-interference capability and stable transmission performance. It is equipped with dual input interfaces for 3G-SDI and HDMI, supporting up to 1080P60 video resolution. Additionally, the P3 mini is equipped with a 5000mAh battery with 4-hours continuous operation and supports PD fast charging, fully meeting versatile application scenarios.

Learn More About KiloLink

Efficient, Stable, and Secure
Bonding Transmission

The P3 Mini is equipped with KiloLink’s patented multi-link bonding transmission technology, which utilizes encryption algorithms to achieve functions such as bandwidth overlay, load balancing, and dynamic bitrate auto-adjustment. This ensures seamless bonding of five networks (3*4G cellular network + WiFi + Ethernet), enabling uninterrupted live streaming experiences. Users can flexibly choose between private, local, or cloudbased deployment of bonding servers to ensure efficient and stable audiovisual transmission. And most importantly, the use of KiloLink is free of charge.

Professional Antenna Design
for Superior Anti-Interference

To ensure the stability of outdoor signal transmission, the P3 Mini undergoes professionalgrade antenna isolation design. This minimizes adverse effects such as screen freezing and intermittent sound caused by signal issues, ensuring the stability and reliability of signal data transmission.

PD Fast Charging for Extended Battery Life

Equipped with a 5000mAh  battery and supporting PD fast charging, the P3 Mini not only provides sufficient battery reserves but also rapidly replenishes power. This enables continuous operation, ensuring seamless support for outdoor LIVE production.

H.265 Encoding, Dual Interface Inputs for SDI+HDMI

Supports H.265/H.264 encoding formats, with a maximum resolution of 1080P60 HDMI and 3G-SDI dual interface inputs. It is comprehensively supporting mainstream media protocols such as NDI HX/RTSP/RTMP/SRT/HLS. Combined with the KiloLink Server bonding platform, it  simultaneously supports stable, highquality, low-latency streaming on multiple mainstream live streaming platforms.

High Sensitivity Touchscreen LCD Display

Equipped with a 3-inch touchscreen, users can preview video in realtime and easily monitor the device’s status, including IP address, network status, video resolution, Tally lights, CPU usage, device temperature, etc.

Dual USB Ports
Offering Infinite Possibilities

The P3 Mini is equipped with dual USB ports, allowing flexible expansion to connect keyboard input, PTZ camera control, achieving integrated multifunctional operation.

Compact Size, Supports Multiple Mounting Options

The P3 Mini is portable, supporting both vertical and horizontal installation. It seamlessly integrates with various cameras, allowing for perfect completion of live streaming tasks anytime, anywhere.

Interfaces

Application Scenarios

Outdoor live streaming, outdoor program production, news reporting, emergency command, vehicle-mounted mobile video transmission, multi-media project engineering, hospital external network video transmission, and other scenarios requiring wireless video transmission.

Marathon

Wedding

House of Worship

Outdoor

*The labeled areas indicate that the product features have been planned and will be released in subsequent versions. Stay tuned for updates.

Main Tech Specs

ModelP3 Mini
Working
Temperature		-15℃~45℃
Weight600g
Voice IntercomSupport
Video Input1*1080P60 HDMI+1*3G-SDI
Video EncodingH.265/H.264
Resolutionup to 1080P60
Recording/StorageUSB expansion
PTZUSB
ProtocolsNDI HX/ SRT/ RTMP/ RTSP/RTP/HLS/ TS-UDP
(with KiloLink Server Pro)
Power SupplyDC 12V/3A PD Fast Charging
Power Consumption16W
Network4G / WiFi / Ethernet
Multi-channel
Audio Encoding		HDMI: 4 channels
SDI: 4 channels
Line in: 2 channels
ManagementWeb/KiloLink Server Pro
Display3" LCD touchscreen
Dimension (mm)138*85*35mm
Bonding
Performance		3CH 4G cellular network, WIFI (2.4G/5G dual band)
， Ethernet
Battery4900mAh 7.2V 35.28W
Audio Port1*3.5mm Line in or SDI/HDMI embedded
