NDI Encoding

It is a Full NDI encoding transmission device, up to 12G-SDI input.When video resolution is 4Kp60, the bitrate can be up to 250Mbps. Therefore,the device and the receiving port should be connected to gigabit network.

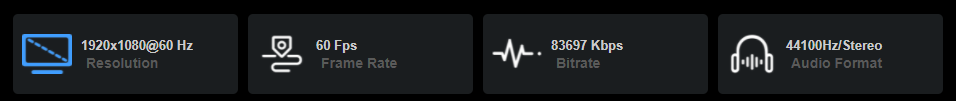

Status Column


Here it will display the resolution, frame rate, bit rate and audio format parameters of the video source.

Coding quality settings

The encoding resolution is the resolution that output from the video source, which cannot be configured for scaled encoding. Encoding bitrate can be appropriately lowered or increased by adjusting encoding quality. The default encoding quality is 100%.

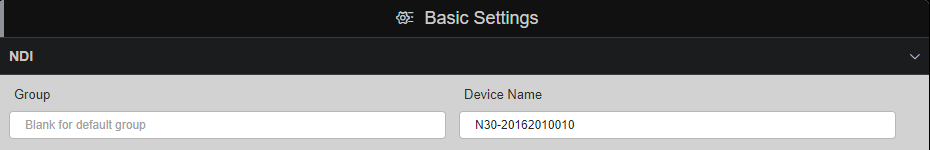

Encoder channel settings

When there are multi NDI sources in the same network, channel names need to be modified to identify different devices because the default channel names are the same.


NOTE: There is no need to save the parameters after modified, since the modification will take effect immediately if click other locations of the page.

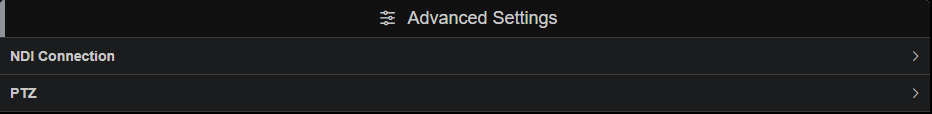

Advanced settings


In advanced settings, you can set the connection mode of NDI stream, which can be unicast or multicast. Here you can also set the PTZ control function.
