Power components installation and removal

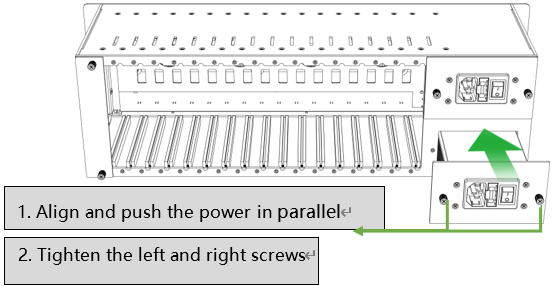

Align the power components with the card slots and push in parallel, then tighten the double-sided screws. Reverse the process for removal.


Note: The two power components work uninterrupted at the same time. When one of the components is powered off or damaged, the device will not be powered off. The power components can be replaced without power supply.
