Please check the unit and accessories listed as below:
- One unit
- One AC 110-220V input and one DC 12V/1A output power supply
- One remote control
- User manual
- Product certification/warranty card 1 set
Getting ready:
- One good quality 75Ω BNC cable. Poor cable quality cable will affect the transmission distance of SDI signals.
- One HDMI cable, one VGA cable or one CVBS cable.
- SDI input source, SDI/HMDI/CVBS monitor or receiving device.

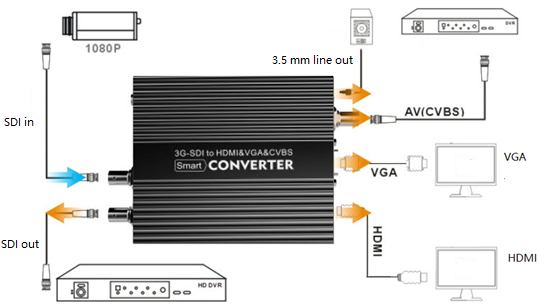

Connection diagram as below:
