HDMI&VGA&CVBS-SD/HD/3G SDI Converter instruction panel

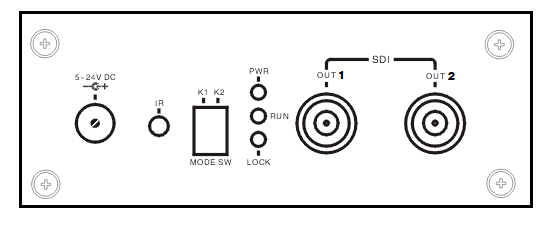

There is a work light at one end of the panel output signal of HDMI & VGA & CVBS-SDI video converter, after power on the PWR indicator light of device should steady, which means that the device is working.
The description of indicator light as below:
| Indicator light | Status | Description |
|---|---|---|
| PWR | off | device is not connect the power supply or device can not start normally |
| flashing | device is not work | |
| steady | device is connect the power supply and work | |
| LOCK | off | no SDI signal input/the device cannot lock SDI signal |
| flashing | the SDI input format is not effective | |
| steady | input SDI signal is normal, lock the SDI signal correctly | |
| RUN | off | device is not work |
| flashing/steady | device is on working |
