Please check the battery is properly installed when using in first time. Please place the remote’s IR transmitter on to the receiver of converter when using the remoter controller.

Basic operations of remote control button:

• MENU display/hide converter control menu
• ▲ ▼ select the menu option for up/down
• ▶ select menu item
• ◀ return to the previous menu
• POWER restore the device factory set
• PICTURE display current input/output video format
• HDMI select converter output video port to HDMI+VGA
• VGA select converter output video port to VGA+CVBS(AV)
• AV select converter output video port to HDMI+CVBS(AV)

Note: other remote control has not effect on the converter, but applicable to company’s other converter model.

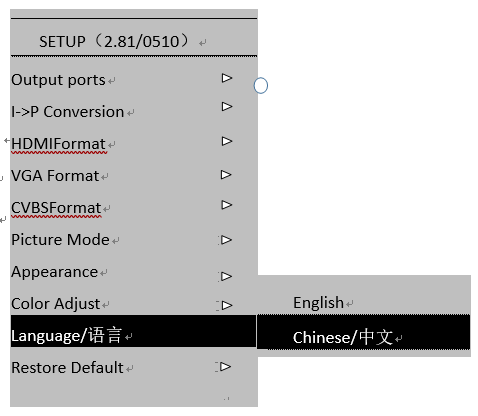

The pop-up remote control menu as shown on the right:

Note: The menu contents maybe difference as the converter software version upgrades, please note that the content contained in this manual does not represent a true icon situation.
