Video sources

list The list displays all the video sources and sources parameters information that you added, not all sources are under decoding status. If request decoding output, drag it to the output area. When video source display is green, “display/pushing” is working.

Adding source

Supported decoding protocols: RTSP, RTMP, RTMPS, RTP, UDP, HTTP. Firstly users need to get the correct video source URL address from other platforms. Abnormal source address will lead to device not working (Users can test whether the source is available via VLC player).

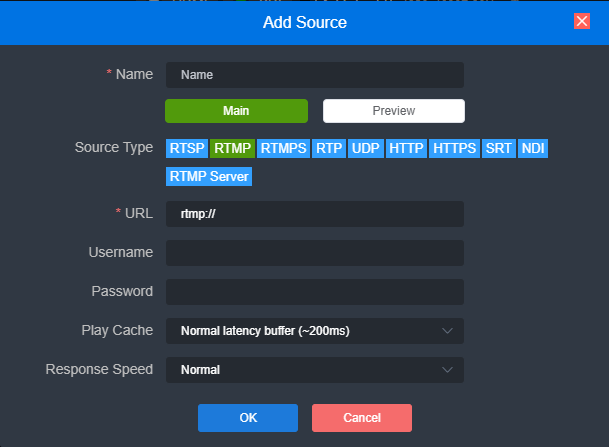

Click “Add” on media interface, configure the relevant parameters on the dialog box, click “Confirm”, one video source is added.

RTMP source configuration

Fill out video source address in URL field: rtmp://

For example: rtmp://192.168.3.13/live/myStream
