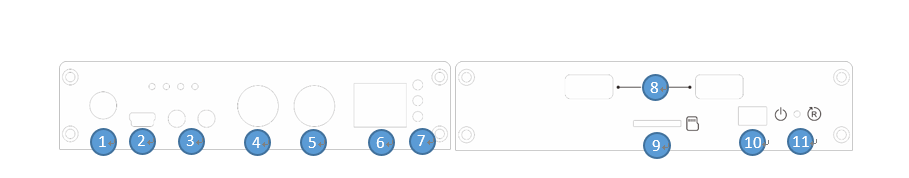

(1) Power port
(2) Mini USB
(3) 3.5mm line in/out
(4) SDI Input
(5) SDI Loop
(6) 100M Ethernet port
(7) Working indicators
(8) USB expansion port
(9) Micro SD/TF slot
(10) Power on /off
(11) Reset
(1) Power port
(2) Mini USB
(3) 3.5mm line in/out
(4) SDI Input
(5) SDI Loop
(6) 100M Ethernet port
(7) Working indicators
(8) USB expansion port
(9) Micro SD/TF slot
(10) Power on /off
(11) Reset
