Packing list
| Name | Unit | Quantity |
|---|---|---|
| Encoder | PCS | 1 |
| WIFI Antenna | PCS | 2 |
| DC12V/1A power adaptor | PCS | 1 |
| Quick start guide | PCS | 1 |
| Certificate/Warranty card | PCS | 1 |
Device interfaces
1, Power input 2, Mini-USB 3, Audio output 4, Audio Line in 5,SDI IN 6,SDI LOOP 7,100M Ethernet interface 8,Status leds

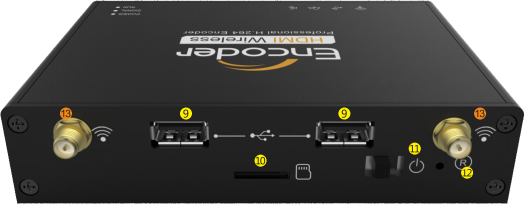

9, USB interface 10, Micro SD/TF Card 11, Power Switch 12, Reset 13, WIFI Antenna
LED indicator descriptions
| Name | Color | Status | Description |
|---|---|---|---|
| POWER | Red | Always on | Power supply is connected |
 |
Flashing | Power failure | |
| Off | Power supply is not connected | ||
| SIGNAL | Green | Always on | SDIsignal is connected |
 |
Flashing | Restore device to factory settings | |
| Off | SDIsignal is not connected | ||
| RUN | Green | Always on | Device is starting |
 |
Flashing | Restore device to factory settings | |
| Off | Working abnormal/not started |
