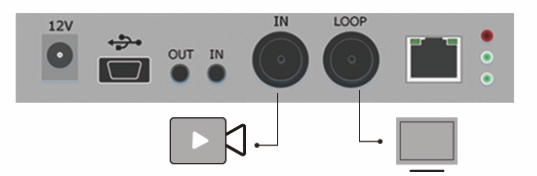

Connecting video signal

Connect the SDI/HDMI signal from the source (such as a camera) to the SDI/HDMI input port of the device via a cable.

NOTE: HDMI’s input interface is on the right

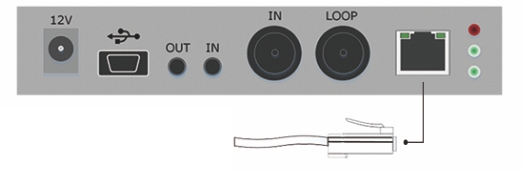

Connect Network

Connect one end of the network cable to the encoder Ethernet port. The other end is connected to the network switch or the computer’s Ethernet port.

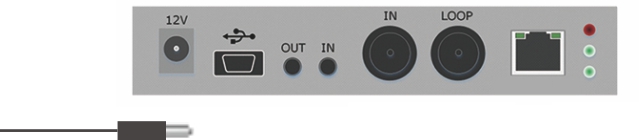

Connect the power adapter

Using the power adapter (DC 12v) connect to the main product, after the power is turned on, then the product starts working immediately.

Connect WiFi antenna(for wireless encoder only)

Connect the WiFi antenna with the device antenna interface
