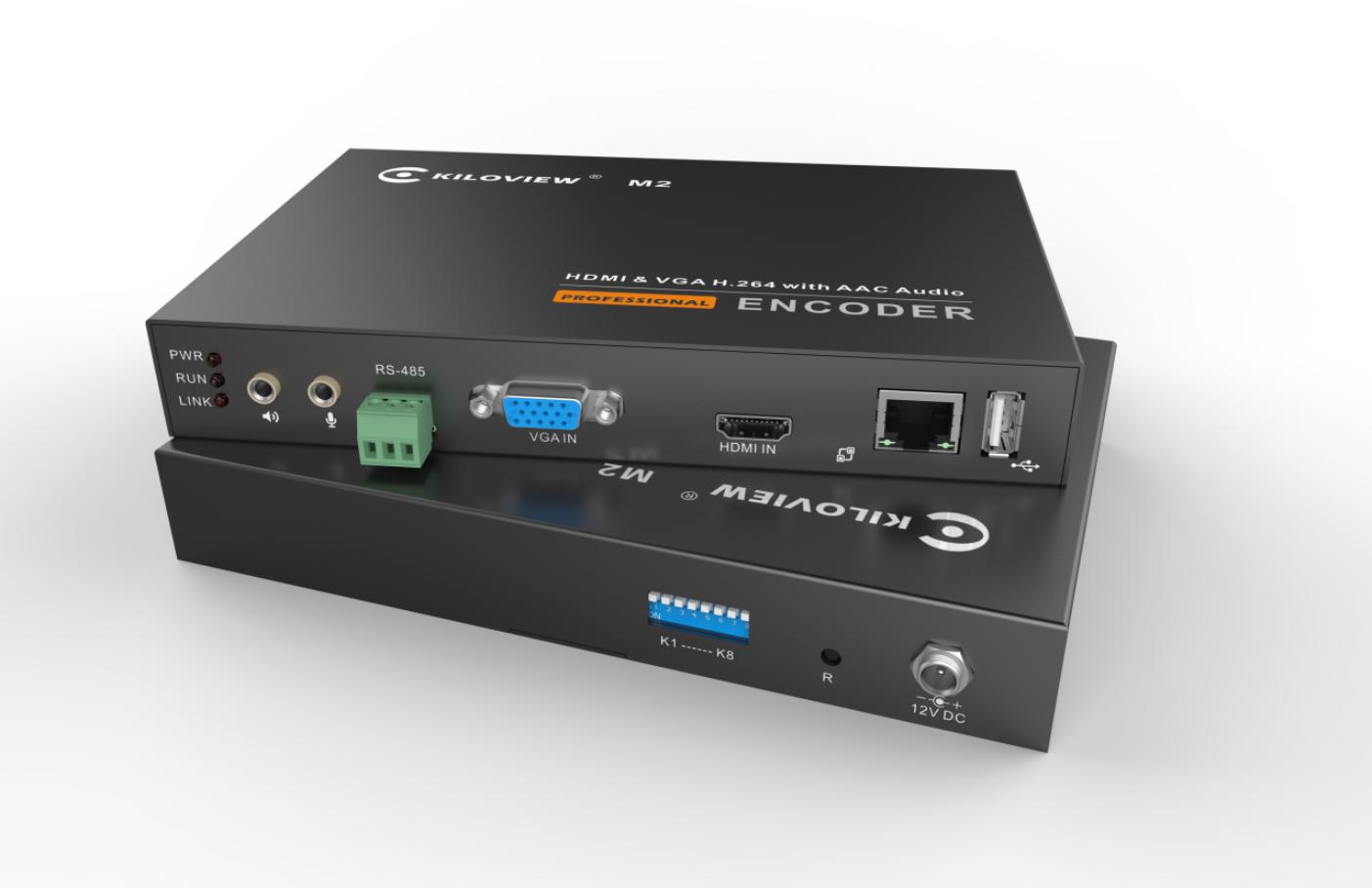

M2 video encoder can encode VGA/HDM video source and compress into IP stream, to realize long-distance HD transmission/live broadcast over WAN or LAN network.

Advantages

• Dual interface design, compatible with various VGA video sources or HDMI video sources.

• VGA interface compatible with VGA/ XGA/ UVGA/ SVGA/ SXGA/SXGA+/ WXGA/ WXGA+/ WSXGA/ WUXGA and other video sources;

• HDMI interface compatible with HDMI1.4 and below;

• 24h continuous working available

• Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/SIP/SRT and some other protocol

• SRT/ RTSP/ RTMP/ HLS/ TS/ Onvif and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform /NVR system;

• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.

• Capable with customized text and image overlay function, which can be at any position on the screen;

• Supports NAS network storage.

• High bandwidth adaptability makes it possible to transmit high-definition,low-latency, non-padding image under low bit network.

• With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission;

• Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network;

• Advanced video buffering technology and FEC technology ensures video encoding delay ≤67ms and stable transmission;

• Adjustable bit rate from 64kbit/s～40Mbit/s.

Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Parameters
