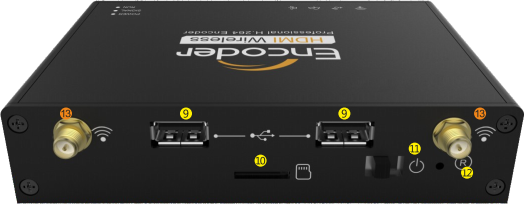

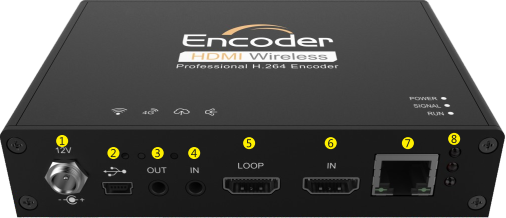

E/G Series device interfaces
| 1、Power input | 2、Mini USB | 3、Audio output | 4、Audio Line in |
|---|---|---|---|
| 5、SDI IN/HDMI LOOP | 6、SDI LOOP/HDMI IN | 7、100M Ethernet interface | 8、Status leds |
| 9、USB interface | 10、 Micro SD/TF Card | 11、Power Switch | 12、Power Switch |
| 13、 WIFI Antenna (for wireless encoder only) |

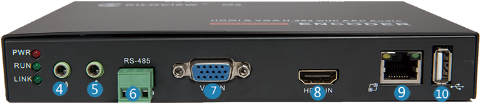

M2 device interfaces
| 1、Dial switch (for custom development only) | 2、Reset | 3、Power input | 4、Audio output |
|---|---|---|---|
| 5、Audio line in | 6、RS-485 Interface | 7、VGA IN | 8、HDMI IN |
| 9、100M Ethernet interface | 10、USB interface |

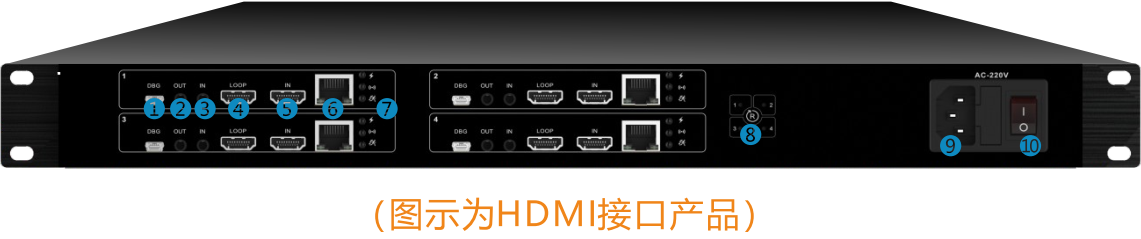

1U Single/multiple device interfaces
| 1、Mini USB | 2、 Audio output | 3、 Audio line in | 4、HDMI LOOP/SDI IN |
|---|---|---|---|
| 5、SDI LOOP/HDMI IN | 6、100M Ethernet interface | 7、Status leds | 8、Reset |
| 9、AC 220V Power input | 10、Power Switch |

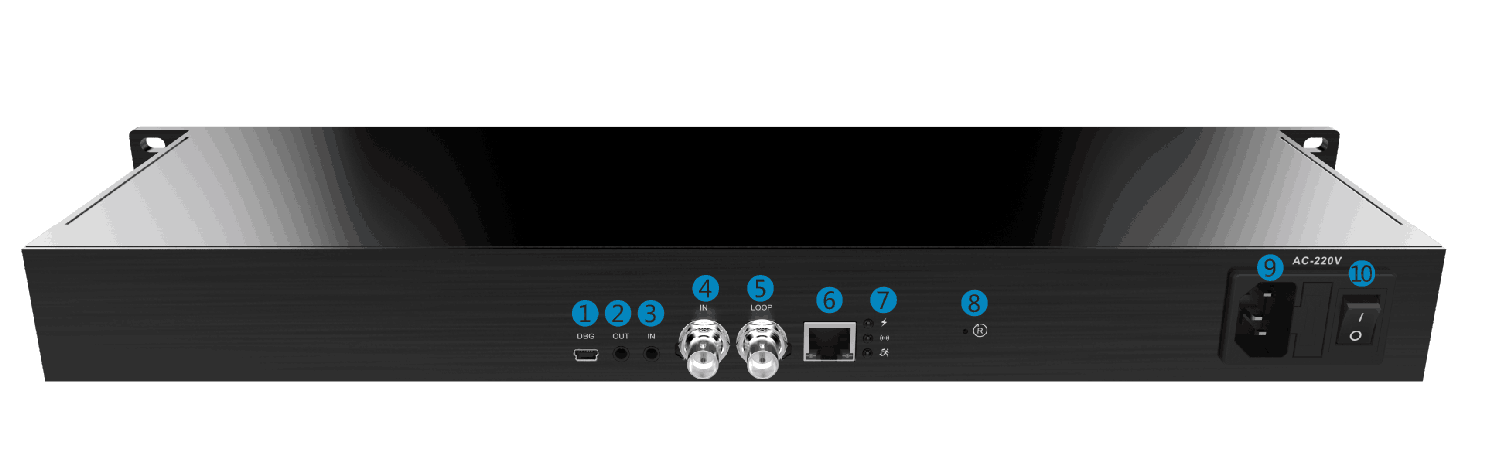

| 1、Mini USB | 2、 Audio output | 3、Audio line in | 4、HDMI LOOP/SDI IN |
|---|---|---|---|
| 5、SDI LOOP/HDMI IN | 6、100M Ethernet interface | 7、 Status leds | 8、Reset |
| 9、AC 220V Power input | 10、Power Switch |
