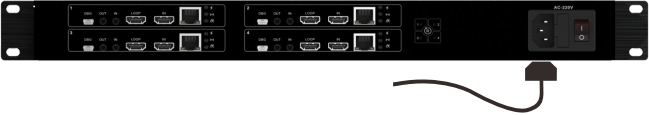

Connect the power adapter

Using the power adapter (AC 220V) connect to the main product, after the power is turned on, then the product starts working immediately.

Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device.

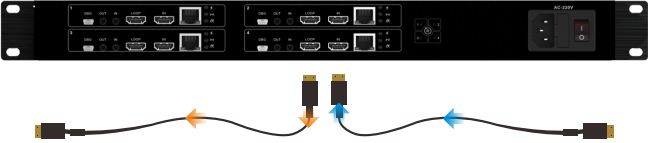

Connecting video signal

Connect the SDI/HDMI signal from the source (such as a camera) to the SDI/HDMI input port of the device via a cable.

Note: HDMI and SDI device interface input and loop position is different. It is subject to the actual device.

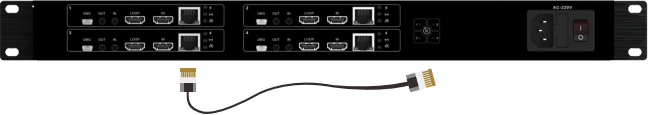

Connect network

Connect one end of the network cable to the encoder Ethernet port. The other end is connected to the network switch or the computer’s Ethernet port.
