Video Source Preview

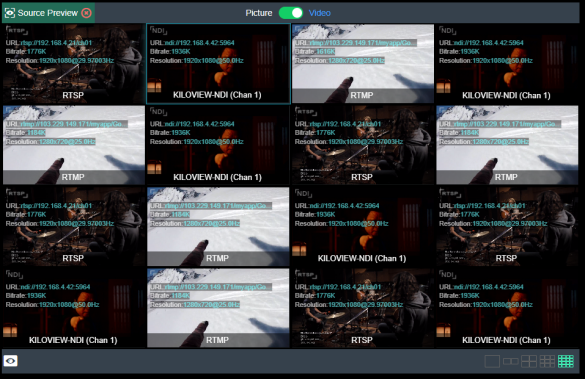

Support preview of video source on WEB page, and can be closed on the upper left corner. Picture/video switch button can switch picture or video preview mode.
Support picture/video preview. If you use pictures in the preview, you will see the picture stream, which is expressed as a picture change in about three seconds; when you use the video preview, it is a smooth video;
The preview function mainly consumes the computer’s CPU/GPU performance. If the multi-screen preview is freezing, it may be related to your computer performance;
Preview supports 1/2/4/9/16 split screen, up to 16 split screen previews;
Required browser: the latest version of Google and Edge;
Only support for local preview in the same LAN for the computer and device, and cannot preview across WAN;
Display of decoding status and source parameter information.
file
file
