There are two output windows on WEB page, corresponding to SDI/DVI physical interface. Dual interface output same or different video source or split screen image.

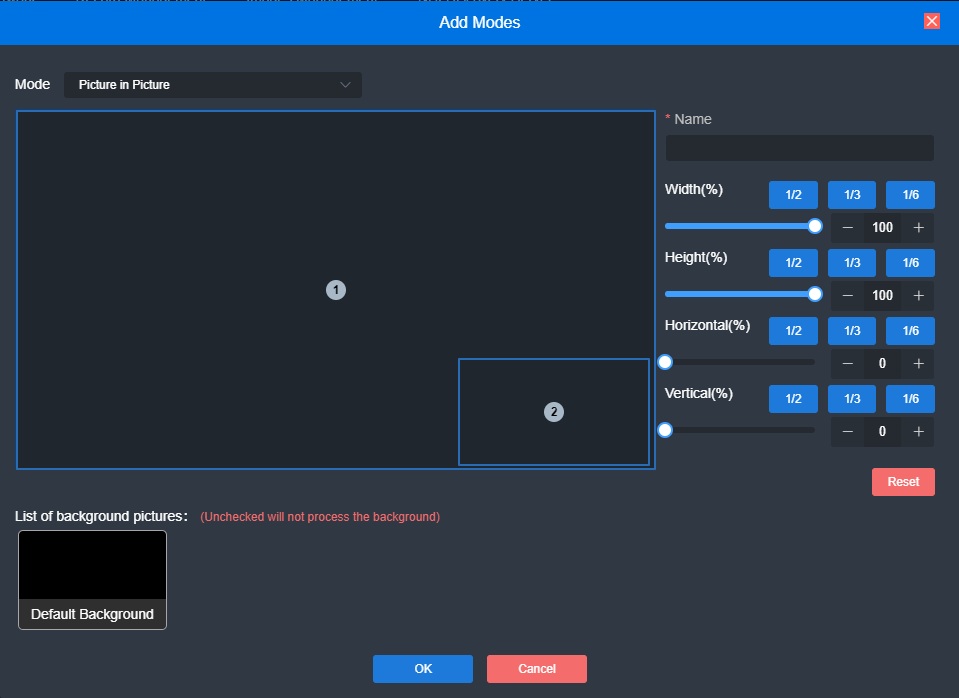

1. Set split screen image through . It supports up to 9 split screen and each screen size is adjustable.
2. Specify the decoded video source for each split screen image. You can directly drag
   the video source to be decoded into the corresponding split screen, or click the split screen and then click the video source to decode and output.
3. Set decoding output image such as Logo, background,state, Enable and Disable of Border. If icon is blue, it means “enable ”, graymeans “disable”. “Border” takes effective for all split image. Logo and background are set in decoding output column.

4. Decoding output window can display name, state and bitrate of video source. Green means normal connection, other color means abnormal connection. Manually added source could set audio output and close audio by speaker button, local source cannot.

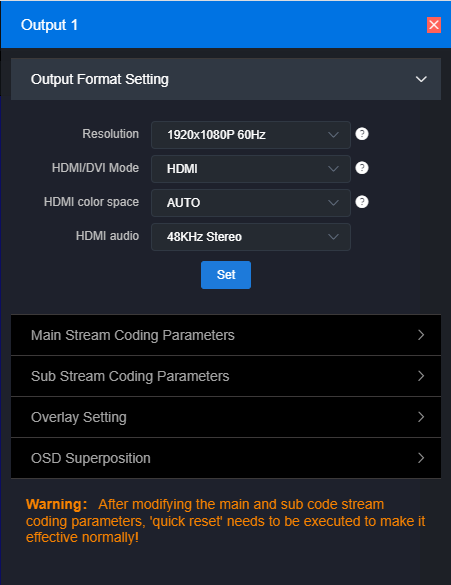

   5.Two output windows output directly to themonitor by SDI/DVI physical interfaces, or reencode the entire image as a stream for output. Set decoding output format and encoding parameter by
   “Overlay” is to set Logo and background for the entire window image (Pictures are added in the "Picture Management" in advance. The logo is recommended to be small, otherwise it will cover most of the screen), after setting, it will work on the output screen and output stream screen of the SDI/DVI interface.
