Upgrade device firmware in recovery mode

If you cannot access the N60 web page with the method described in 9.2, please use the Recovery mode to upgrade the firmware, as follows.
Step 1: Prepare a USB flash drive or SD card, copy the firmware file downloaded from Kiloview website to the USB flash drive/SD card.

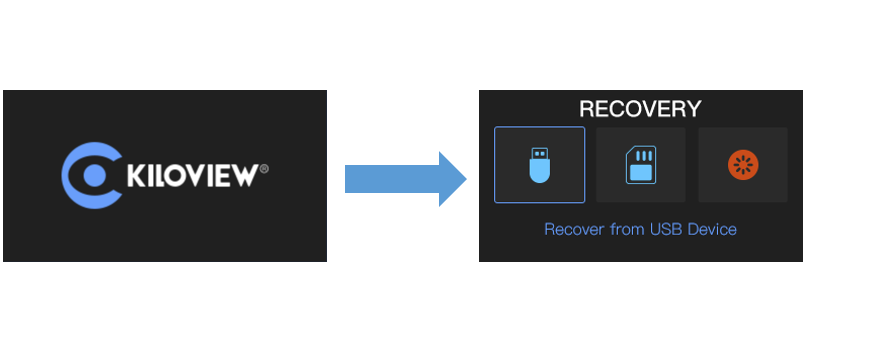

Step 2: Insert the USB flash drive or SD card into the N60, after the device is turned on (about 2s), wait for the Kiloview logo to appear on the screen, long press and hold the scroll wheel for more than 10s until the device enters recovery mode.

N60

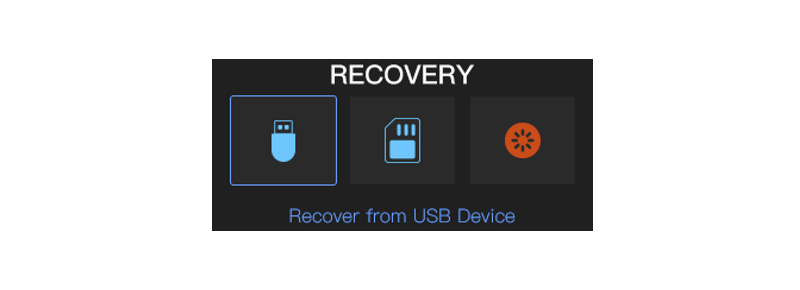

Step 3: Select "Recover from USB Device" or "Recover from SD Card" by turning the scroll wheel, press the wheel to confirm the selection to start the upgrade.

N60

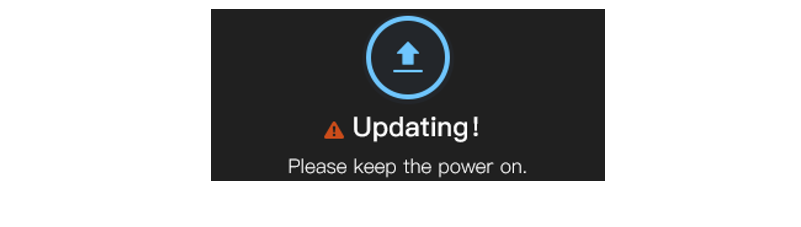

Step 4: During the upgrading, it will prompt with "Updating! Please keep the power on." (Please do not power off).

N60

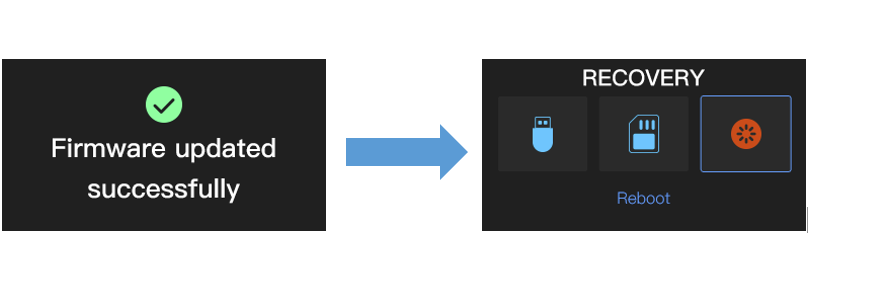

Step 5: When the N60 screen displays "Firmware updated successfully", the N60 has completed the firmware upgrade. At this time, any operation of the scroll wheel will help you return to“RECOVERY”, please select “Reboot” to restart the device.

N60
N60
