Android APP

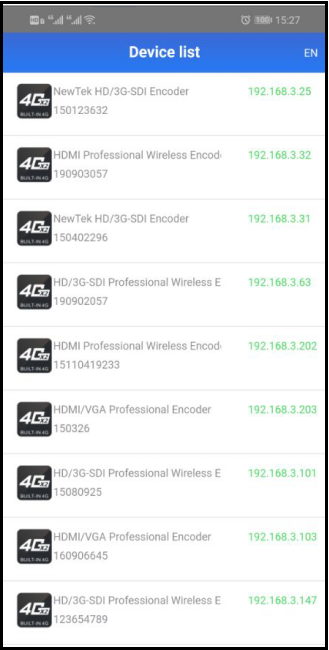

  • Connect the phone to the same network segment of the WiFi that the device connects. (You can share the hotpots while using P and G series encoder) .Open the APP and search the connected devices under the same network segment automatically in the device list.

  • The device information shown in the list includes device interface information, device serial number, device IP address, etc.

  • Click the device from the device list to enter into management page.

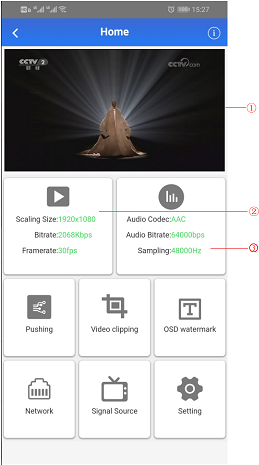

  • On the configuration page, it shows video source image on the area of ① to monitor whether video source is normal. This image stream is refreshed in three seconds.

  • Click②for main stream configuration .

  • Click③for audio encoding configuration .

  • Click“Pushing”for stream service configuration .

  • Click “Video Clipping” for video clipping function.

  • Click “OSD watermark” for image overlay function configuration. APP only supports text and time overlay configuration, image overlay is configured on Web page .

  • Click “Network” for network configuration .

  • Click “Signal Source” for audio and video source choice page .

  • “Setting”are used for quick reset, device reboot, restoring factory settings and device name modifications.

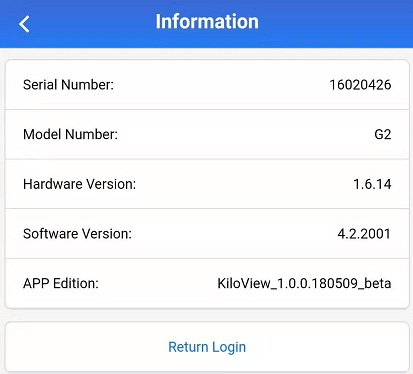

Click and enter into device information page.
