Device Management

Device default IP address

The default IP of the device is 192.168.1.168 and the subnet mask is 255.255.255.0.

This IP address is the Failsafe address.

Normally you don’t need to modify this IP address.

Login the WEB Console

First set your PC’s IP address to 192.168.1.0/24 subnet, and then log in using the default IP address.

You can access http://192.168.1.168, to login the web console

Login username: admin; Pas sword: admin.

Note: For the first login or after restoring the factory settings, you need to agree to the popping up “End User License Agreement”. Otherwise, the device cannot work normally.

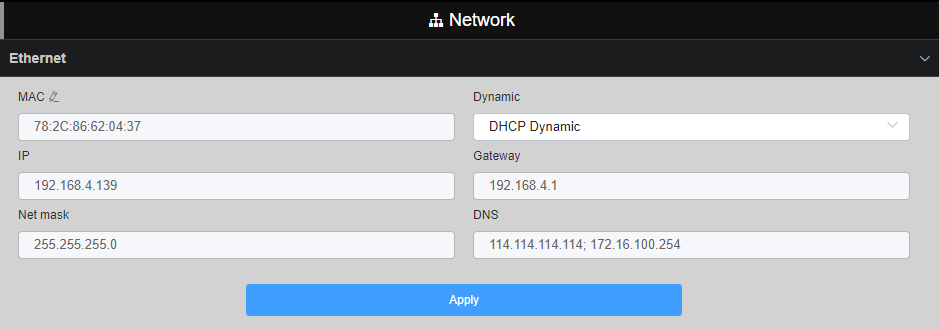

IP address configuration

After login, you can configure the IP address according to the network. It can be manually set or DHCP dynamic (Default set is DHCP dynamic).
