Power connection

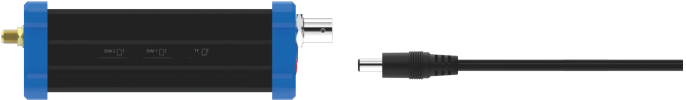

Use the standard power adapter (DC 12V) to connect the device, after power on, the device charges the built-in battery. Press the power switch on the device for more than 3 seconds. The power light flashes and the device starts up.

If it is used in the mobile status, it can be powered by the built-in battery directly. Press the power switch to start working (the built-in battery can last for about 4 hours).


About built-in battery:

  1. While the device is powered on, connected with the power adapter, the device is powered by the adapter. The battery is not charging.
  2. While the device is powered off, connected with the power adapter, the battery will be charging.

About fan

  1. While the device is powered on, the fan will start working when reaches a certain temperature.
  2. While the device is powered off, the fan is working while charging.

Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device.
