Network storage(NAS)

NAS is a Disk Arrays connected by network, it has all the main characteristics of disk arrays: high capacity, high efficiency and high reliability.

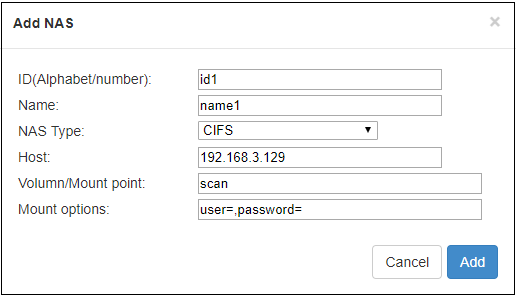

Open NAS Manager, click “ add NAS”, then fill in the corresponding parameters.


  • ID/ Name: Any Alphabet/number
  • NAS Type: NFS or CIFS (CIFS is a shared protocol for network connection, which requires high reliability of network transmission, TCP/IP is usually adopted; NFS is transport-independent,TCP or UDP is adopted; One of the disadvantage of NFS is, it requires the user to install a special software, while CIFS is integrated inside the OS, and no additional software is needed.)
  • Host: IP address of the Host
  • Volumn/Mount point:Storage location on the host
  • Mount options: Settings about the user name and password.

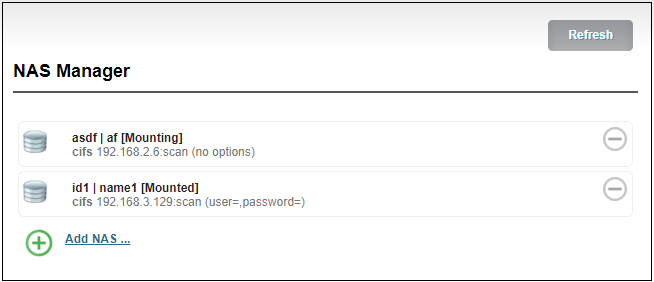

NAS manager will show “Mounted” if NAS connection has been established, and there is a RECORD file under the Mount point. If the connection is abnormal, it will be displayed as “Mounting”.
